Sunroof / Moonroof Panel: Service and Repair

76.84.03 Glass Panel - Sun Sliding Roof - Front - 5 Door

Remove

1. Open sun roof blind.







2. Remove covers from glass securing screws.

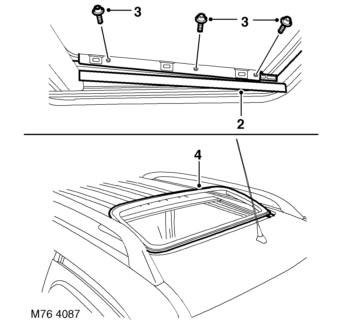

3. Remove 6 screws securing glass.
4. Remove glass.

Refit

1. Position glass, fit screws but do not tighten at this stage.
2. Align glass to roof and tighten screws, alignment points should be measured 300 mm either side of the centre line.
3. Set front of glass, flush to roof panel to 1.0 mm down.
4. Set rear of glass, flush to roof panel to 1.0 mm up.
5. Fit screw covers.
6. Operate sunroof to check alignment.
7. Close sun roof blind.
