Glove Box

76.52.03 Glove Box

Remove

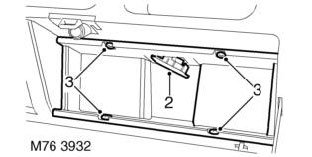

1. Open glove box and remove glove box mat.







2. Release illumination lamp from glove box.
3. Remove 4 screws from glove box and remove glove box.

Refit

1. Fit glove box and secure with screws.
2. Fit illumination lamp.
3. Fit glove box mat.
4. Close glove box.
