Front

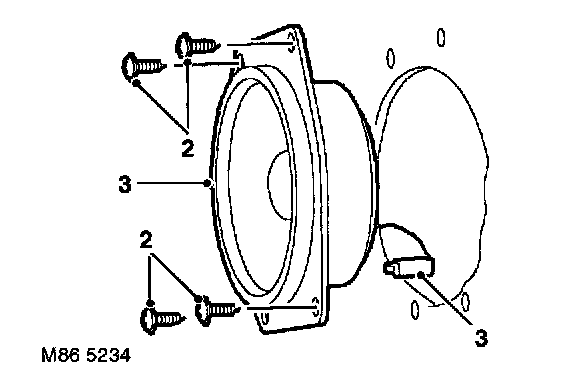

Remove
1. Remove front door trim casing.







2. Remove 4 screws securing speaker to front door.
3. Disconnect multiplug from speaker and remove speaker.

Refit
1. Position speaker to door and connect multiplug.
2. Fit speaker to door and secure with screws.
3. Fit front door trim casing.
