Blade - Wiper - Front Screen

Blade - Wiper - Front Screen


Service repair No - 84.15.06

Remove







1. Lift wiper arm from screen.
2. Release wiper arm lock.
3. Release wiper blade from arm.

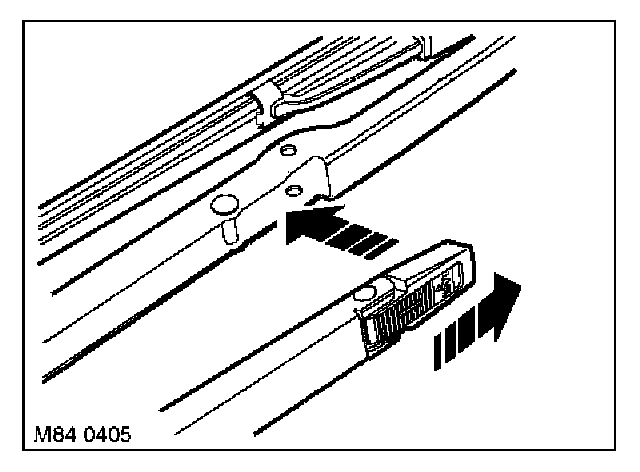

Refit
1. Position new blade to wiper arm.
2. Push blade into engagement with arm and check blade is retained.
3. Lower arm onto screen.
