Arm - Wiper - Tailgate

Arm - Wiper - Tailgate

Service repair No - 84.35.01

Remove
1. Remove upper tailgate finisher.

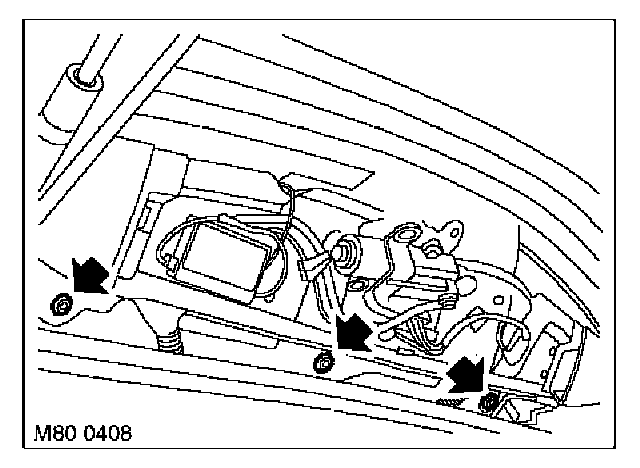

2. Remove 3 bolts securing spoiler to tailgate.
3. Close tailgate.
4. More spoiler aside for access.

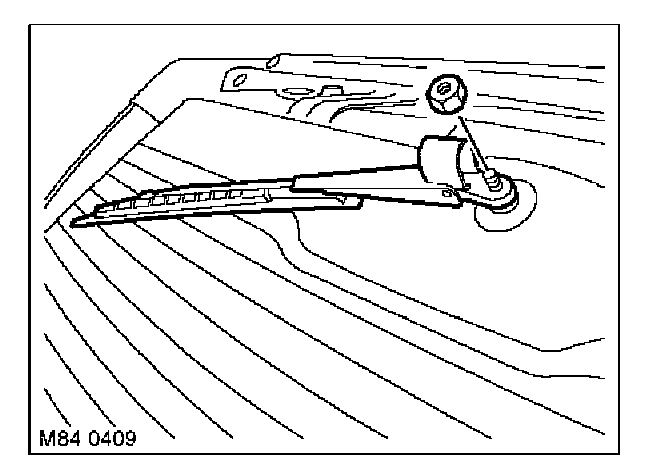

5. Raise nut cover on wiper arm and remove nut.
6. Remove rear wiper arm.

Refit
1. Fit wiper arm to spindle, align blade to glass and tighten nut to 13 Nm (10 lbf.ft).
2. Close nut cover.
3. Fit and secure spoiler to tailgate, tighten bolts to 10 Nm (7 lbf.ft).
4. Fit upper tailgate finisher.
