Arm - Wiper - Front Screen

Arm - Wiper - Front Screen

Service repair No - 84.15.02

Remove

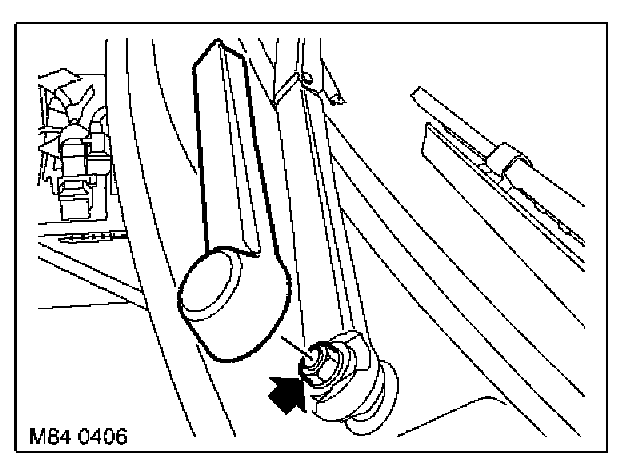

1. Remove nut cover on wiper arm and remove nut.
2. Remove wiper arm from spindle.


NOTE: Do not carry out further dismantling if component is removed for access only.


3. Remove wiper blade.

Refit
1. Fit wiper blade.







2. Fit wiper arm to spindle, fit nut and lightly tighten. Ensure the wiper blade approach angle is 86 °. Set wiper arms to dimensions shown below:
- Passenger side 'A' = 58 mm (2.283 in)
- Drivers side 'B' = 40.5 mm (1.594 in)
3. Tighten wiper arm nut to 34 Nm (25 lbf.ft)
4. Fit nut cover.
