Windshield Washer Pump: Service and Repair

Pump - Washer

Service repair No - 84.10.21

Remove
1. Remove LH front wheel arch liner.
2. Position container to catch windscreen washer fluid.

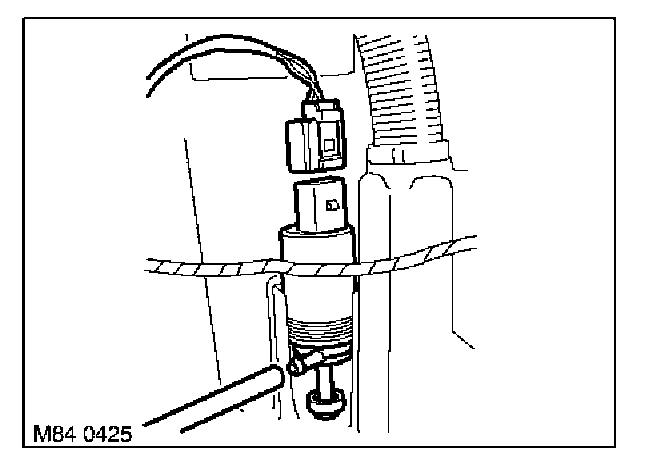

3. Disconnect multiplug and hose from windscreen washer pump.
4. Remove washer pump from reservoir and remove and discard pump seal.

Refit
1. Clean washer pump and reservoir recess.
2. Fit new seal to pump and fit to reservoir.
3. Connect hose and multiplug to pump.
4. Refill reservoir.
5. Fit wheel arch liner.
