Headlamp Wiper Arm: Service and Repair

Arm - Wiper - Headlamp

Service repair No - 84.25.02

Remove

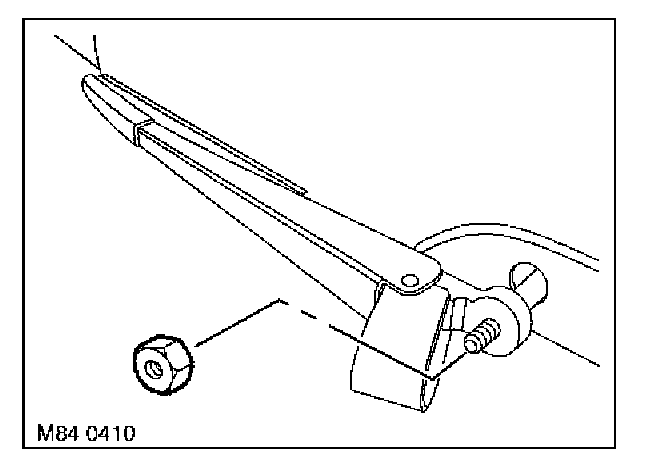

1. Raise nut cover, remove nut and release wiper arm.

Refit
1. Fit wiper arm to spindle, align blade to glass and tighten nut to 6 Nm (4.4 lbf.ft).
2. Fit wiper arm fixing cover.
