Shift Cable: Service and Repair

Rod/cable assembly - selector
44.15.08

Remove
1. Position vehicle on lift.
2. Select "P".





3. Remove center console.

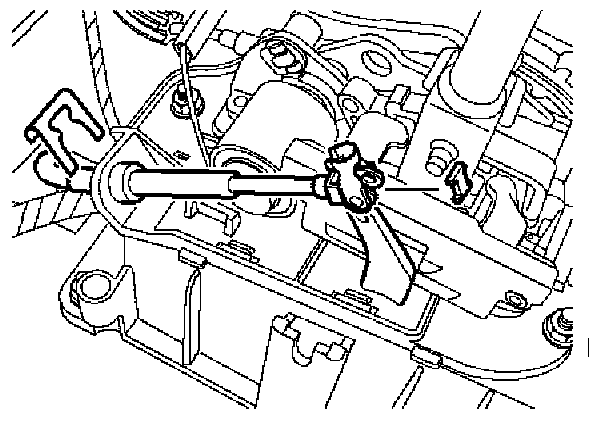

4. Remove clip securing outer gear shift cable to mechanism.





5. Release and remove clip securing inner gear shift cable to mechanism, collect plastic spacer from cable.

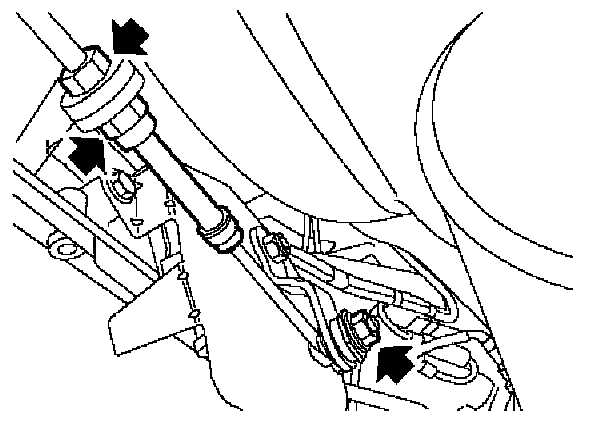

6. Loosen nut securing selector cable to selector lever and release selector cable from bracket.
7. Remove cable and grommet through carpet access panel.

Refit
1. Position cable through access panel, fit grommet and carpet.
2. Position selector cable through bracket and selector lever and secure selector cable to bracket.
3. Tighten nut securing selector cable to selector lever to 15 Nm (11 ft. lbs.).
4. Position cable to selector mechanism, fit spacer and secure with clips.
5. Fit center console.
