Shift Cable: Adjustments
Selector cable - check and adjust44.30.04
Adjust
1. Position vehicle on lift.
2. Move the selector lever to "P" position.
3. Raise vehicle on lift.

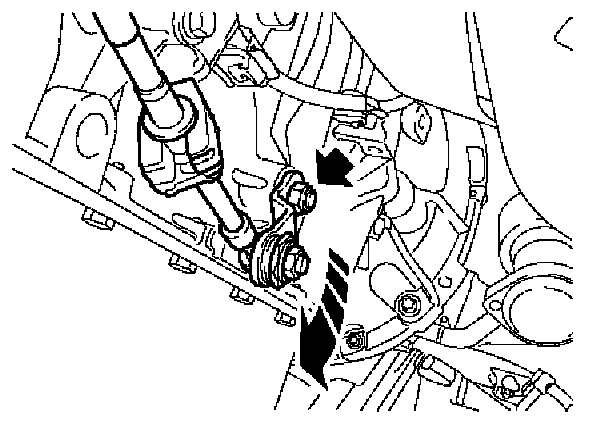

4. Using 2 spanners, restrain trunnion and loosen nut securing inner cable to selector lever.
5. Move selector lever on gearbox fully clockwise to engage "P" position.
6. Tighten trunnion nut to 15 Nm (11 ft. lbs.).
7. Lower vehicle on lift.
8. Move selector lever from "P", check gear engagement in each position and return to "P".
9. Check that the engine will start in "P" and "N" positions and that engine start is inhibited when drive positions are selected.
