A/C - System Inoperative

No: 82/01/06/NAS

FGN 4J2-03

Ref:

Issue: 1

Date: January 11, 2006

AC Hose Chaffing Repair

AFFECTED VEHICLE RANGE:
New Range Rover (LM) 3A101029 to 4A173623

SITUATION:
AC INOPERATIVE

A customer may report a concern that the air conditioning (A/C) has ceased to operate. The A/C hoses at the front of the engine bay may be in contact. The resulting chaffing of the hose can lead to loss of refrigerant.

RESOLUTION:
REPLACE DAMAGED HOSES

Should a customer complain of inoperative Air Conditioning, determine the cause or the source of the leak. Install a hose retaining clip between the compressor and the intermediate pipes and replace any affected A/C hoses.

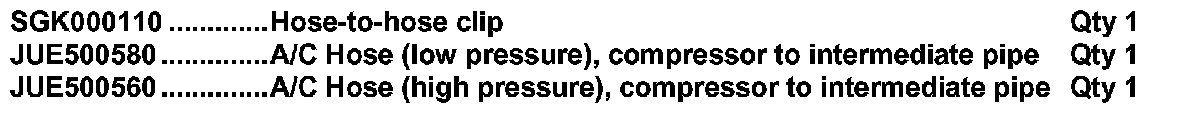

PARTS INFORMATION

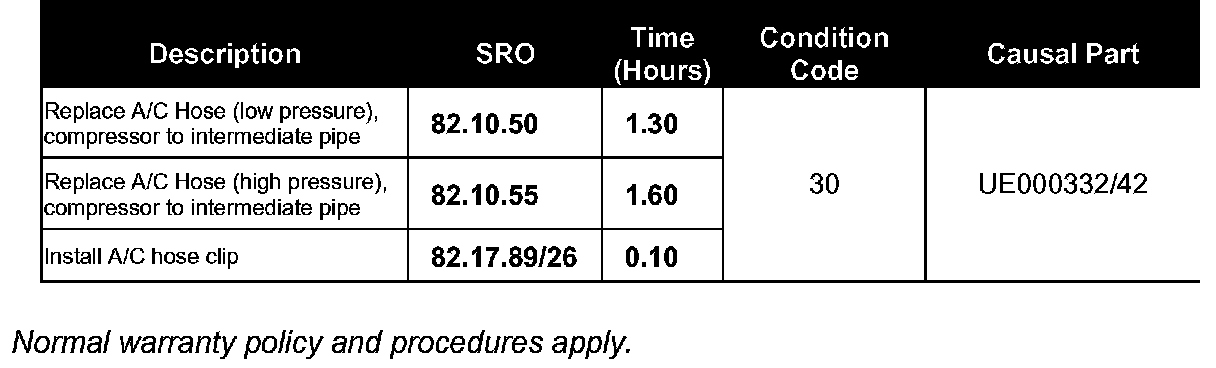

DDW WARRANTY CLAIMS

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

REPAIR PROCEDURE

INSPECT AND REPLACE DAMAGED HOSES





NOTE:

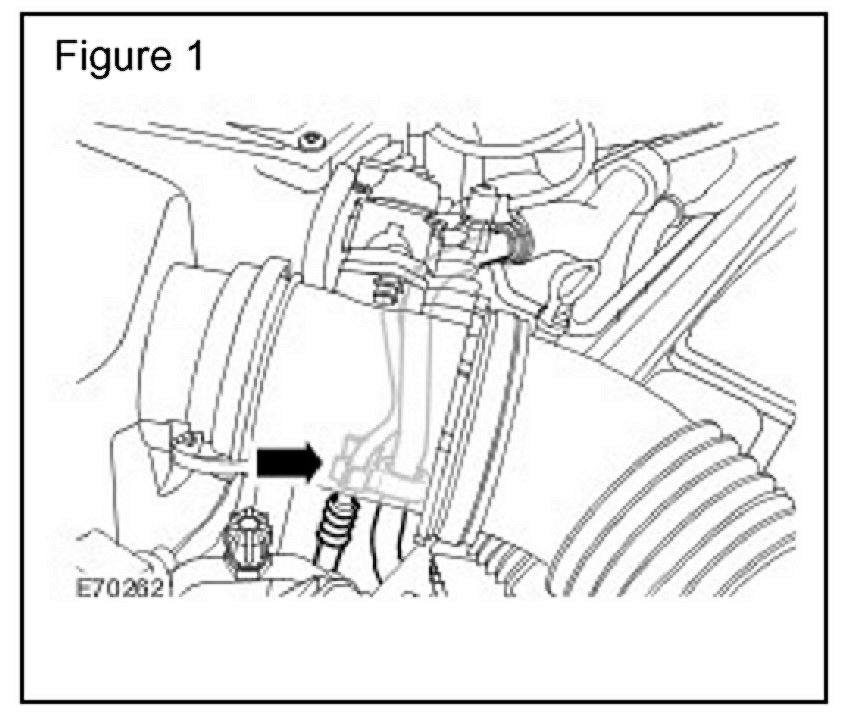

A contact condition between the two pipes in the area illustrated in Figure 1 is the likely cause of refrigerant loss.

1. Visually inspect the A/C hose from the compressor to the intermediate pipe for damage.

2. If hose damage is NOT the cause of the refrigerant loss, further diagnosis will be required to determine the A/C system fault.

NOTE:
GTR lookup sequence is as follows:

GTR Home>NAS>Service Information/LM Range Rover/2004>Workshop Manuals> Range Rover Workshop Manual Service Procedures> Bookmark "82 Air Conditioning">Link "82.30.02 Refrigerant recovery - recycling and recharge".

3. If it is determined that hose damage is the cause of the refrigerant loss and subsequent A/C system failure, perform the following:

^ Refer to GTR Workshop Manual Section 82.30.02 and recover any refrigerant remaining in the A/C system.

^ Replace the damaged hose(s).

^ Install the clip between the two A/C hoses.

4. Refer to GTR Workshop Manual Section 82.30.02 and recharge the A/C system.

5. Check the A/C system operation.
