A/C - Control Unit Scraping/Rubbing Noise
TA02 8202September 5, 2002
ATTENTION:
Service Manager
Service Advisor
Technician
2003 Range Rover HVAC Control Noise
Situation
Prior to delivery of any 2003 Range Rover vehicle, activate the HVAC control button as described below to determine if a scraping or rubbing type noise may be heard when the vehicle is turned on or off or when one of the HVAC control buttons is operated.
An actuating motor contacting the RH center console trim in the passenger foot well causes this noise. If the noise is present, remove the panel and install a foam spacer block as described below.
Inspect for noise
NOTE:
Do not start engine in the following procedure so that the noise can be heard.
1. Park vehicle in a quiet area. Close all doors.
2. Insert ignition key and turn to position II.
3. Set fan speed to lowest setting.

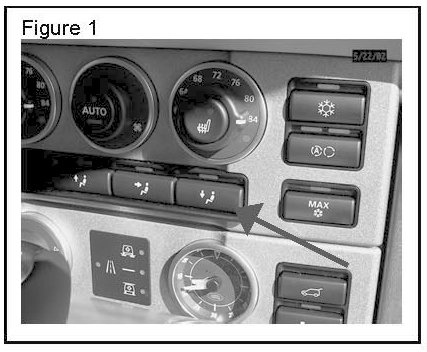

4. While listening closely in the passenger foot well, operate the right side AC button (foot well distribution) on the HVAC panel. (Figure 1)
5. If the noise is not present, no further action is required.
Install foam spacer block

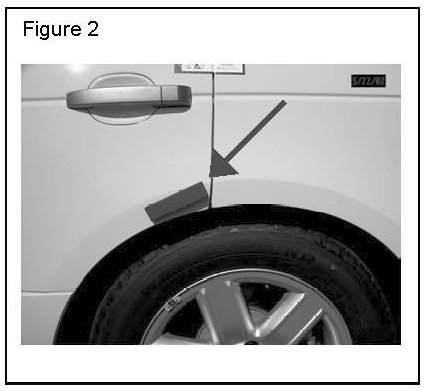

6. If the noise is present, obtain 1 inch insulating foam CUBE (foam blocks installed as transit protection by the factory on the side of the vehicle work well)
NOTE:
It may be necessary to apply a drop of adhesive to the block to hold it in place until the panel is reinstalled. Ensure block is not applied in the relief area for the actuator arm (there is a slight depression in the panel material that identifies this area).

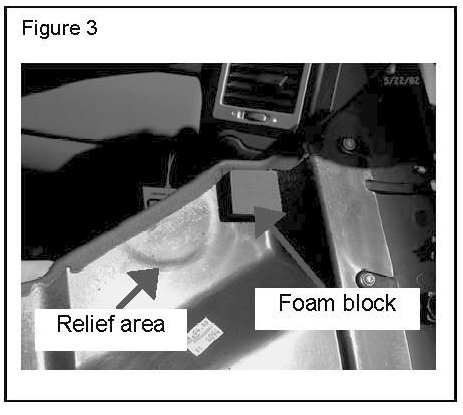

7. Apply the foam block to the trim panel as shown in Figure 3.
8. Reinstall the RH panel taking care to ensure the alignment dowel at the top of the panel is properly engaged in the center console.
9. Ensure foam block stays affixed to panel.
10. Reinstall the T20 torx screw.
11. Check that the noise is no longer present.
