Suspension Control Module: Service and Repair

Electronic Control Unit (ECU) - air suspension

Remove
1. Remove passenger's side lower fascia finisher.

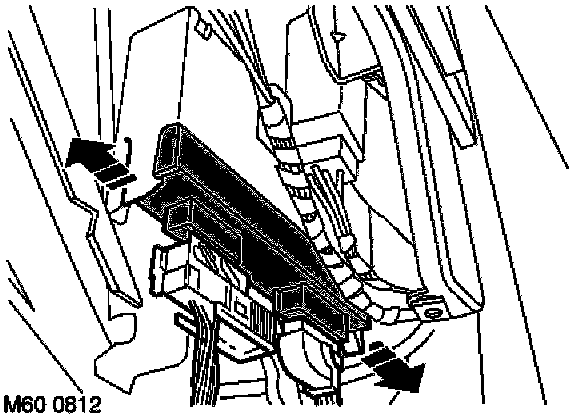

2. Release 2 clips and withdraw ECU from holder.
3. Disconnect 2 multiplugs from ECU.
4. Remove ECU.

Refit
1. Position new ECU, connect multiplugs and secure ECU in holder.
2. Fit passenger's side fascia lower finisher.
3. Use Test Book/T4 to re-calibrate system.
