Upper Arm

Bushes - upper arm

Remove
1. Remove upper arm.
2. Secure upper arm in a soft jawed vice.

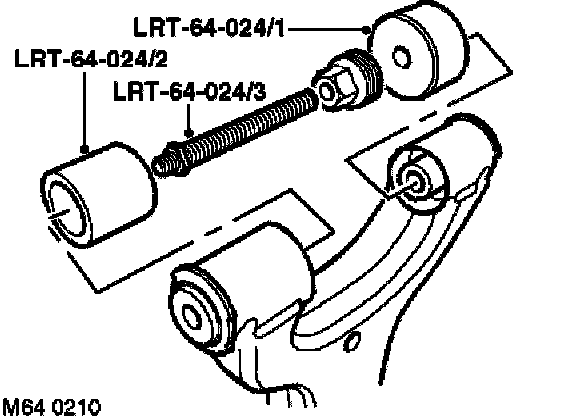

3. Remove bushes using LRT-64-024/1 with LRT-64-024/2 and LRT-64-024/3.

Refit

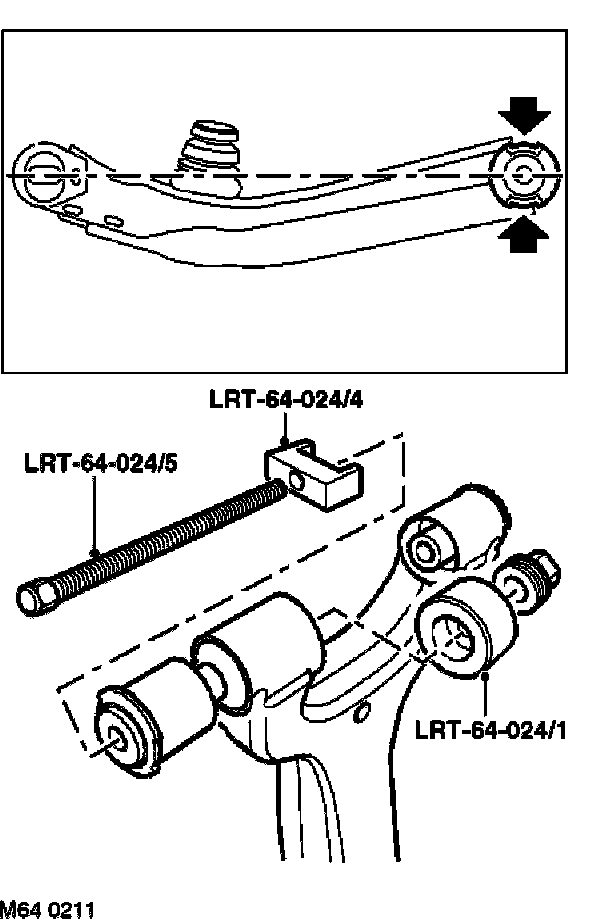

1. Align bushes as shown and fit using LRT-64-024/1 with LRT-64-024/4 and LRT-64-024/5.
2. Remove upper arm from vice.
3. Fit upper arm.
