Lower Arm - Rear

Bushes - lower arm - rear

The bushes must be replaced as a pair, LH and RH sides.

Remove
1. Remove lower arms.

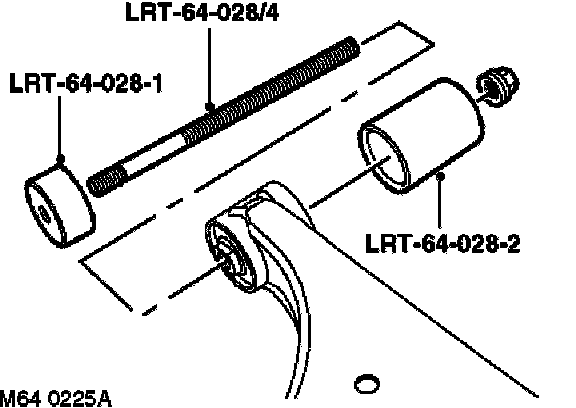

2. Remove bush using LRT-64-028/1 with LRT-64-028/2 and LRT-64-028/3 in direction shown.
3. Repeat procedure for other side.

Refit
1. Ensure bush and bush location in lower arm is clean.

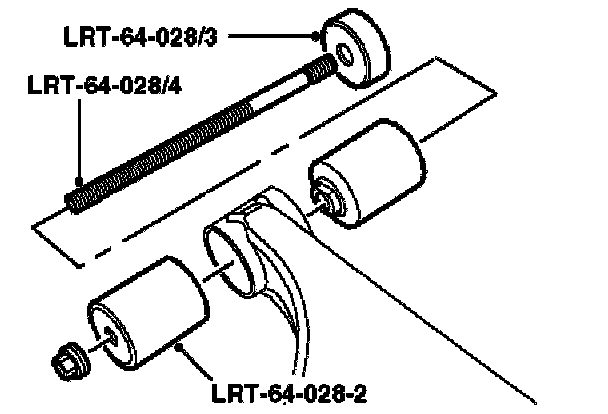

2. Fit bush using LRT-64-028/4 with LRT-64-028/2 and LRT-64-02G/3 in direction shown.
3. Repeat procedure for other side.
4. Fit lower arms.
