Lower Arm - Front

Bushes - lower arm - front

The bushes must be replaced as a pair, LH and RH sides.

Remove
1. Remove lower arms.

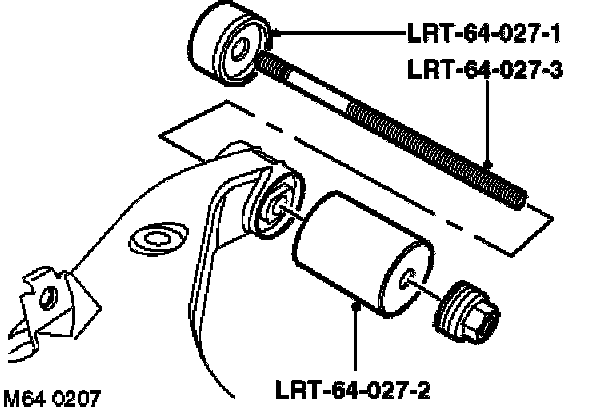

2. Remove bush using LRT-64-027/1 with LRT-64-027/2 and LRT-64-027/3 in direction shown.
3. Repeat procedure for other side.

Refit
1. Ensure bush and bush location in lower arm is clean.

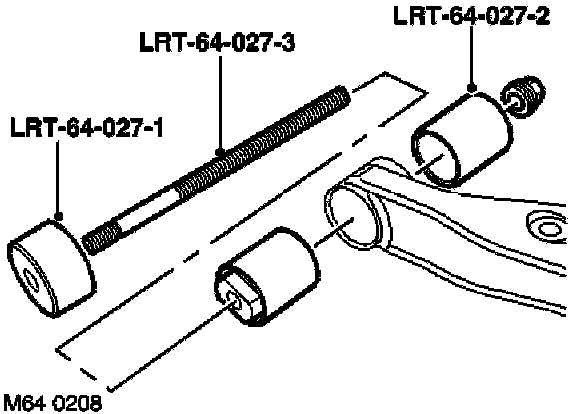

2. Fit bush using LRT-64-027/1 with LRT-64-027/2 and LRT-64-027/3 in position and direction shown.

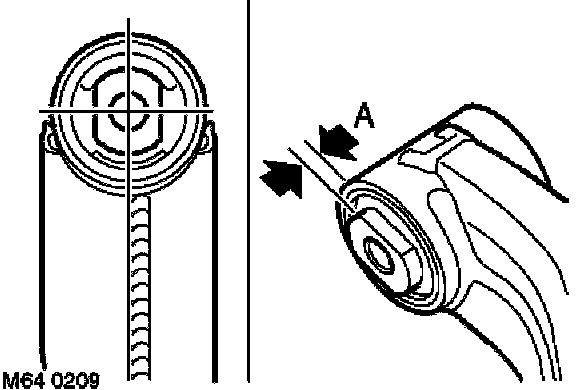

3. Check dimension 'A'. Dimension 'A' = 6.8 mm (0.27 inch).
4. Repeat procedure for other side.
5. Fit lower arms.
