Telescoping Wheel Switch: Service and Repair


Switch - column adjustment - control

Remove

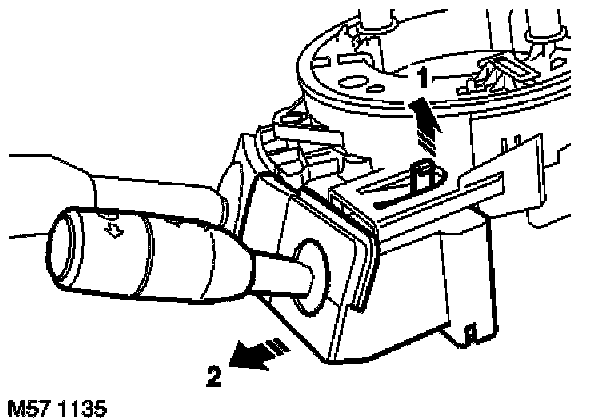

1. Remove rotary coupler.





2. Release clip securing switch to rotary coupler and remove switch assembly.

Refit
1. Position switch assembly to rotary couplers fit and secure clip
2. Fit rotary coupler.
