Steering Column Position Sensor: Service and Repair

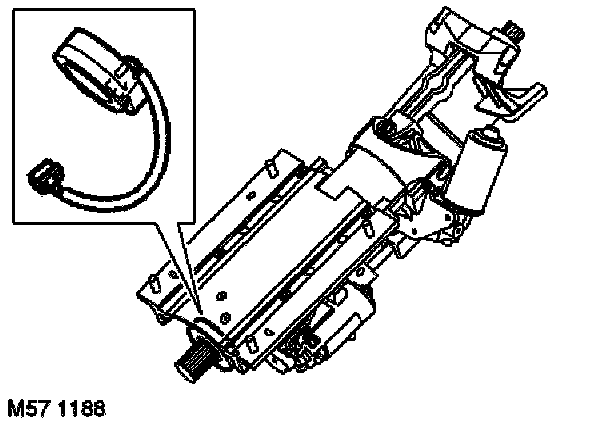

Sensor - steering angle/column

Remove
1. Remove steering column assembly.





2. Release steering angle sensor from retaining clip and remove from shaft.

Refit
1. Position steering angle sensor to shaft and secure to retaining clip.

NOTE: Make sure the steering angle sensor is correctly aligned to the steering shaft.

2. Fit steering column assembly.
