Steering Column Cover: Service and Repair

Nacelle - column - complete

Remove
1. Remove steering wheel.

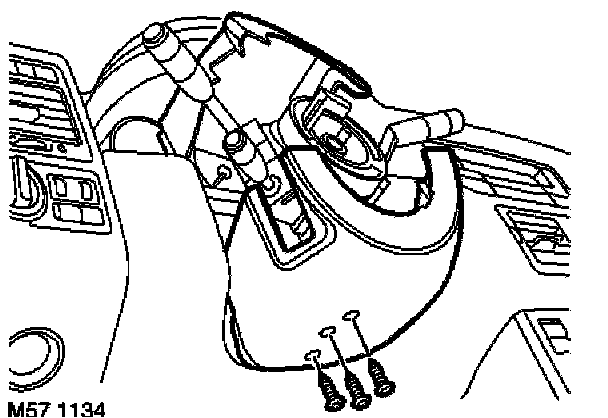

2. Remove 3 Torx screws securing steering column nacelle.
3. Release nacelle from clips securing assembly to column extension gaiter
4. Remove steering column nacelle.

Refit
1. Fit upper half of nacelle and ensure that clips engage with lower half.
2. Secure nacelle with Torx screws.
3. Fit and secure steering column extension gaiter to nacelle.
4. Fit steering wheel.
