Wiper Relay: Service and Repair

Relay - Wiper Delay


Service repair No - 84.15.37

Remove
1. Remove battery carrier.

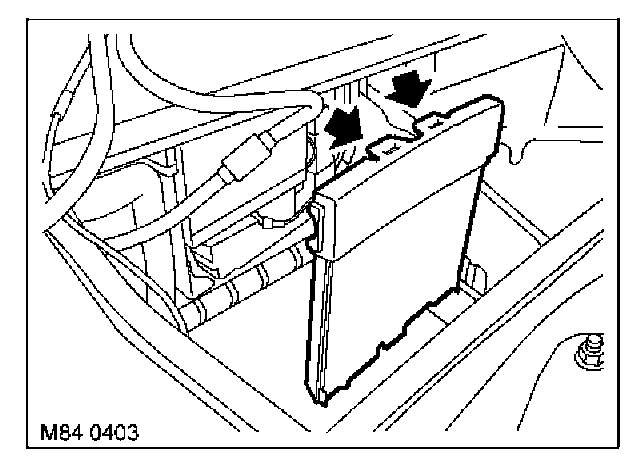

2. Release clips securing ECU cover to bulkhead. Remove cover.







3. Disconnect relay and multiplug from bulkhead fuse box.

Refit
1. Connect relay to bulkhead fuse box mounting.
2. Fit and secure ECU cover.
3. Fit battery carrier.
