Throttle Body Replacement

Throttle Body


Service repair no - 19.22.45


Remove

1. Remove air intake hose.

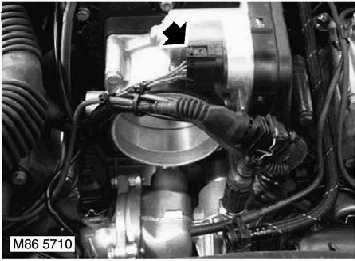

2. Disconnect multiplug from throttle body.

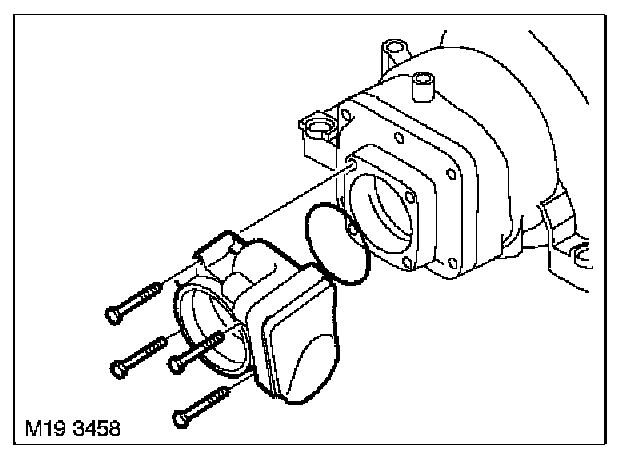

3. Remove 4 bolts securing throttle body to inlet manifold and remove throttle body.
4. Discard 2 throttle body seals.

Refit

1. Clean mating faces of throttle housing and inlet manifold.
2. Fit 2 new throttle body seals.
3. Fit throttle housing to inlet manifold and tighten 4 bolts to 10 N.m (7 lbf.ft).
4. Connect multiplug to throttle body.
5. Connect air intake hose.
6. Re-set adaptions using TestBook/T4.
