Intake Air Plenum: Service and Repair

Plenum - Air Intake

Service repair No - 80.15.62

Remove
1. Release bonnet support stays, raise and secure bonnet in upright position.
2. Disconnect battery earth lead.

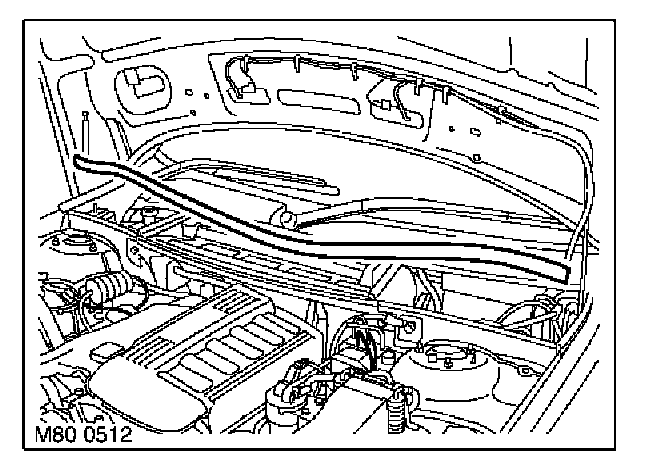

3. Remove bonnet sealing rubber from air intake moulding.

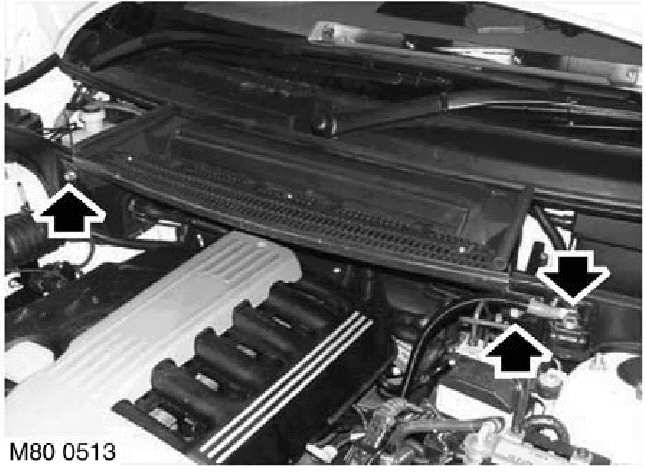

4. Release cover from positive cable.
5. Remove nut and disconnect positive cable from stud.
6. Remove 2 nuts securing plenum and remove air intake plenum assembly.

NOTE: Do not carry out further dismantling if component is removed for access only.

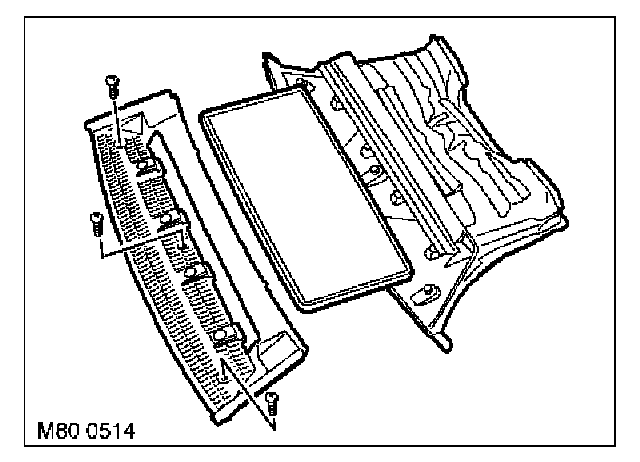

7. Remove 3 screws securing air intake cover and remove cover.
8. Remove air filter.

Refit
1. Fit air filter.
2. Fit plenum cover and secure with screws.
3. Fit plenum assembly and tighten nuts to 10 Nm (7 lbf.ft).
4. Fit positive cable to stud and tighten nut to 20 Nm (15 lbf.ft).
5. Fit cover.
6. Fit bonnet sealing rubber to air intake moulding.
7. Connect battery earth lead.
8. Reconnect support stays and close bonnet.
