Intake Air Duct: Service and Repair

19.10.28 Hose - Air Flow Meter To Throttle Body

Remove
1. Remove engine acoustic cover.

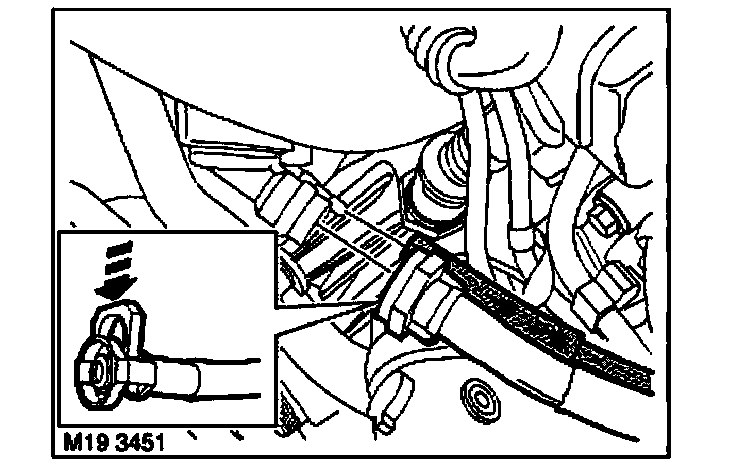

2. Disconnect vacuum pipes from air intake pipe.







3. Release 2 clips and disconnect air intake pipe from throttle body.
4. Remove air intake pipe.
5. Remove seal from air intake pipe, at MAF sensor connection end.
6. Remove clips from air intake pipe.

Refit
1. Fit seal to MAF sensor.
2. Lubricate air intake pipe mating face of throttle body seal and MAF sensor seal to aid refit.
3. Fit clips to air intake pipe.
4. Fit and secure air intake pipe.
5. Connect vacuum pipes to air intake pipe.
6. Fit engine acoustic cover.
7. If a replacement sensor has been fitted, reset adaptions using TestBook/T4.
