Fuel Injector: Service and Repair

Injectors - Set


Service repair no - 19.60.12


Remove

1. Remove fuel rail.

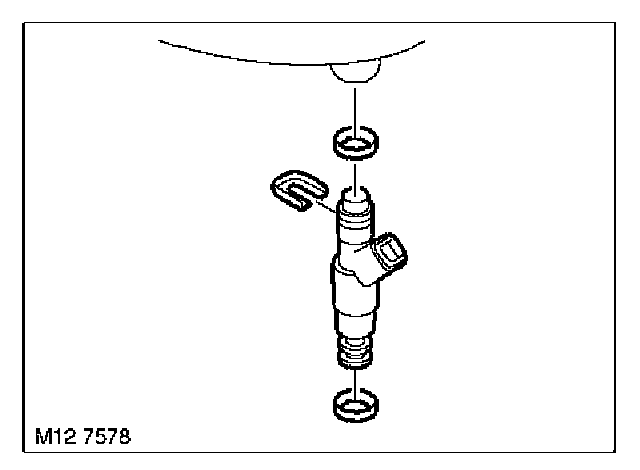

2. Remove spring clips securing injectors to fuel rail and remove injectors. Discard 2 "O" rings from each Injector.

Refit

1. Lubricate new O rings with silicone grease and fit to each end of injectors.
2. Fit injectors to fuel rail and secure with spring clips.
3. Fit fuel rail.
