Front Differential - Drain and Refill
Front differential - drain and refill54.15.02
Drain

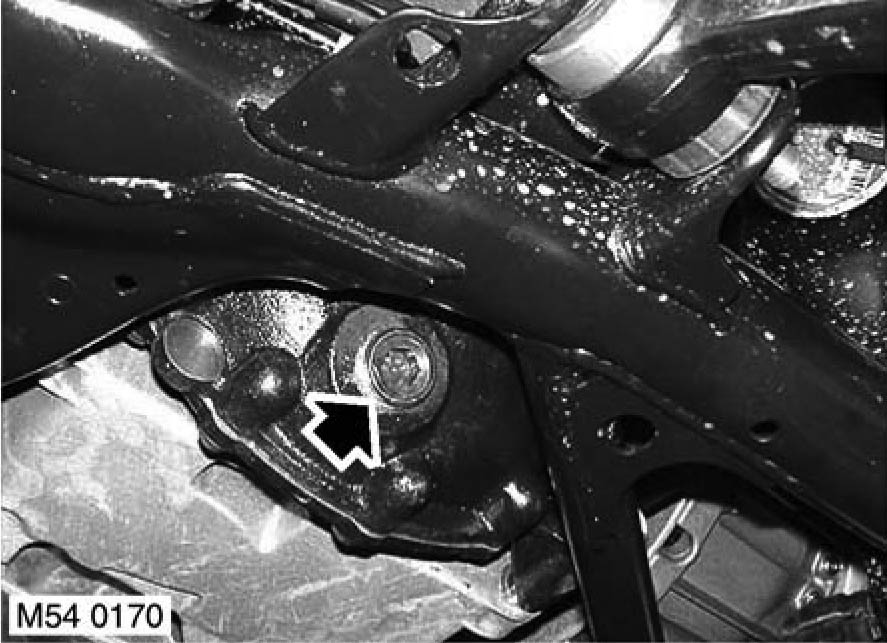

1. Position vehicle on lift.
2. Position container to catch spillage.
3. Clean area surrounding drain and level plugs.
4. Remove drain plug and collect fluid.
Refill
1. Apply sealant, Part No. STC 50552 to drain plug, fit and tighten to 65 Nm (48 ft. lbs.).
2. Remove filler/level plug.
3. Fill differential using recommended lubricant, until a thread of oil runs from filler/level plug. Allow time for lubricant to find common level.
4. Apply sealant, Part No. STC 50552 to filler/level plug, fit and tighten to 45 Nm (33 ft. lbs.)
