Lamp Assembly - Indicator Side Repeater

Lamp Assembly - Indicator Side Repeater

Service repair No - 86.40.53

Remove

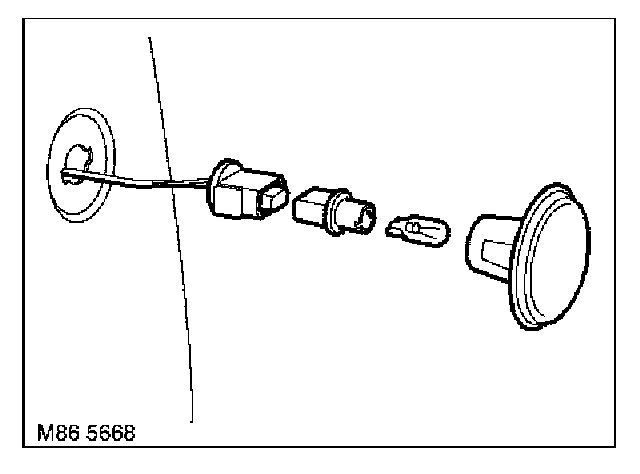

1. Push side repeater lamp towards front of vehicle. Release clip and ease lamp from wing.
2. Disconnect multiplug.


NOTE: Do not carry out further dismantling if component is removed for access only.


3. Release bulb holder from lamp.
4. Release bulb from holder.

Refit
1. Fit bulb and secure bulb holder to lamp.
2. Connect multiplug.
3. Fit and secure lamp assembly.
