Switch - Combined Direction Indicator/ Headlight




Switch - Combined Direction Indicator/ Headlight

Service repair No - 86.65.55

Remove
1. Remove rotary coupler.

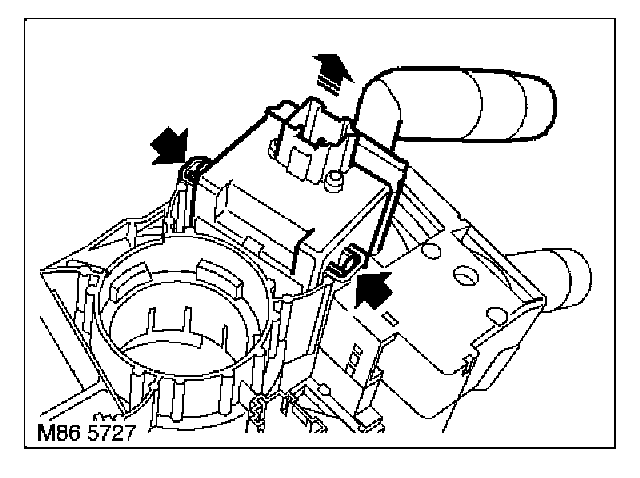

2. Depress 2 clips and remove switch from rotary coupler assembly.

Refit
1. Fit switch to rotary coupler ensure engagement of clips.
2. Fit rotary coupler.
