Brake Lamp: Service and Repair

Lamp Assembly - Stop - Centre High Mounted

Service repair No - 86.41.32

Remove
1. Remove upper tailgate finisher.

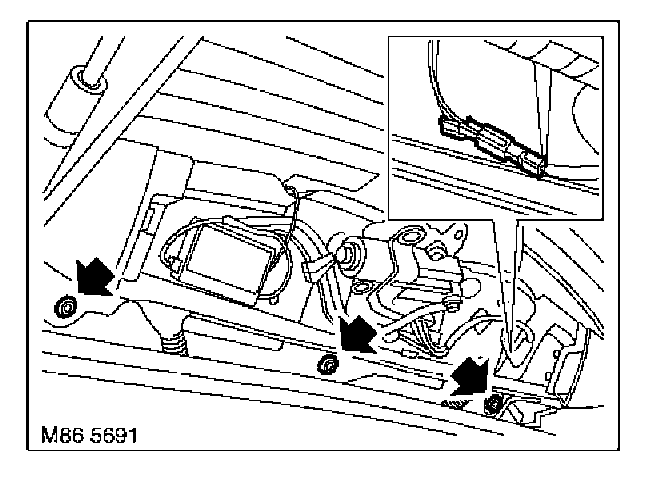

2. Remove 3 bolts securing spoiler to tailgate.
3. Disconnect multiplug from harness.
4. Close upper tailgate.
5. Slide spoiler rearward and release from clips. Release Central High Mounted Stop Lamp (CHMSL) harness from tailgate and remove spoiler.


NOTE: Do not carry out further dismantling if component is removed for access only.


6. Remove 4 screws securing CHMSL to spoiler, release harness from spoiler and remove lamp.


Refit
1. Position CHMSL and harness to spoiler, secure with screws.
2. Fit and secure spoiler to tailgate, tighten bolts to 10 Nm (7 lbf.ft).
3. Open upper tailgate.
4. Connect multiplug.
5. Fit upper tailgate finisher.
