Backup Lamp: Service and Repair

Bulb - Reverse Lamp

Service repair No - 86.40.90

Remove

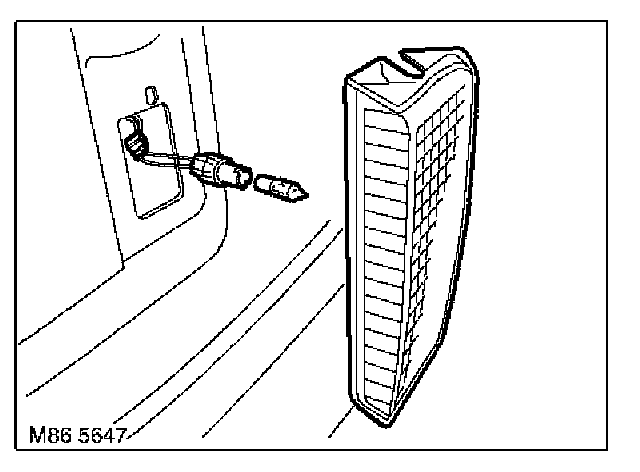

1. Remove screw securing reversing lamp to lower tailgate, release lamp and disconnect bulb holder.
2. Release bulb from holder

Refit
1. Fit new bulb to holder.
2. Fit bulb holder to lamp.
