Resistor Unit - Fan Motor - LHD

Resistor Unit - Fan Motor - LHD

Service repair No - 80.20.17

Remove
1. Disconnect battery earth lead.
2. Remove glove box.

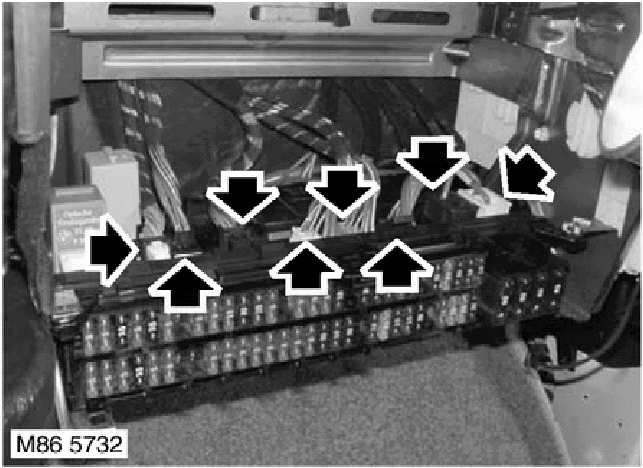

3. Noting fitted position, disconnect 8 multiplugs from fuse box.

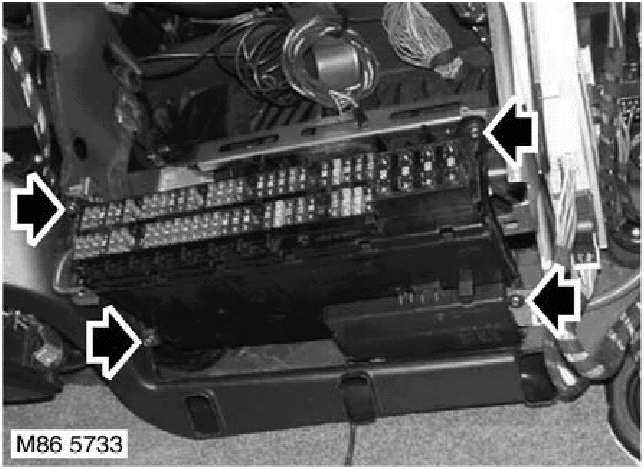

4. Remove 4 Torx screws securing the fuse box, position the fuse box aside.

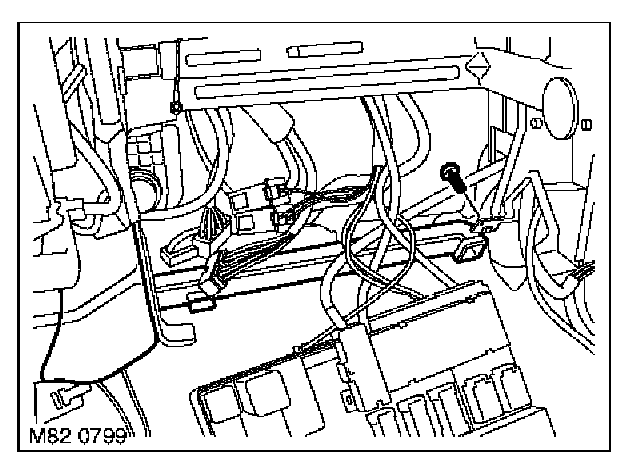

5. Remove screw securing footwell heating duct to carrier. Remove duct.

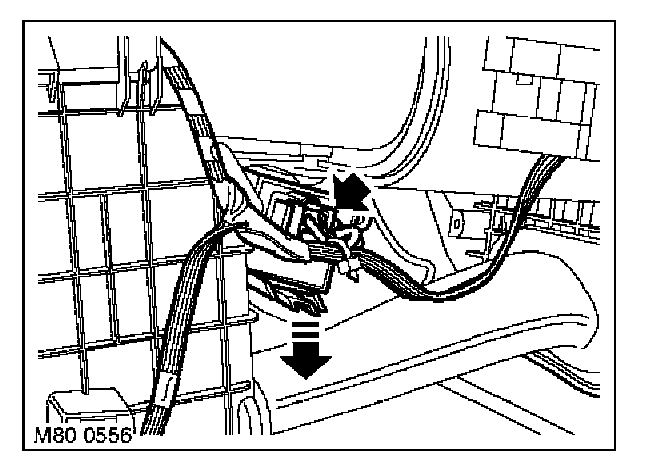

6. Disconnect multiplug from resistor.
7. Release clip securing resistor to heater assembly remove resistor.

Refit
1. Position resistor to heater assembly, locate on dowels and secure.
2. Connect multiplug to resistor.
3. Position and secure footwell heating duct.
4. Position fuse box secure with screws.
5. Connect multiplugs to fuse box.
6. Fit glove box.
7. Connect battery earth lead.
