Oil Pan: Service and Repair

Baffle Plate
Before disconnecting the battery, ensure all text and cautions in the battery disconnection section are observed.
Refer to Service Precautions.

Remove
1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove engine oil sump.

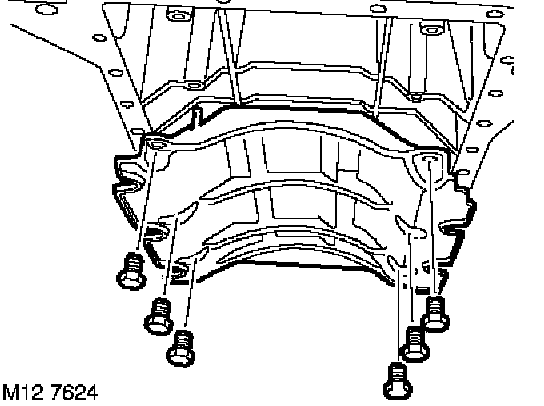

4. Remove 6 bolts securing baffle plate and remove plate.

Refit
1. Fit baffle plate and tighten bolts to 10 Nm (7 ft. lbs.).
2. Fit engine oil sump.
3. Connect battery earth lead.
