Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2003
>>
Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Control
Control

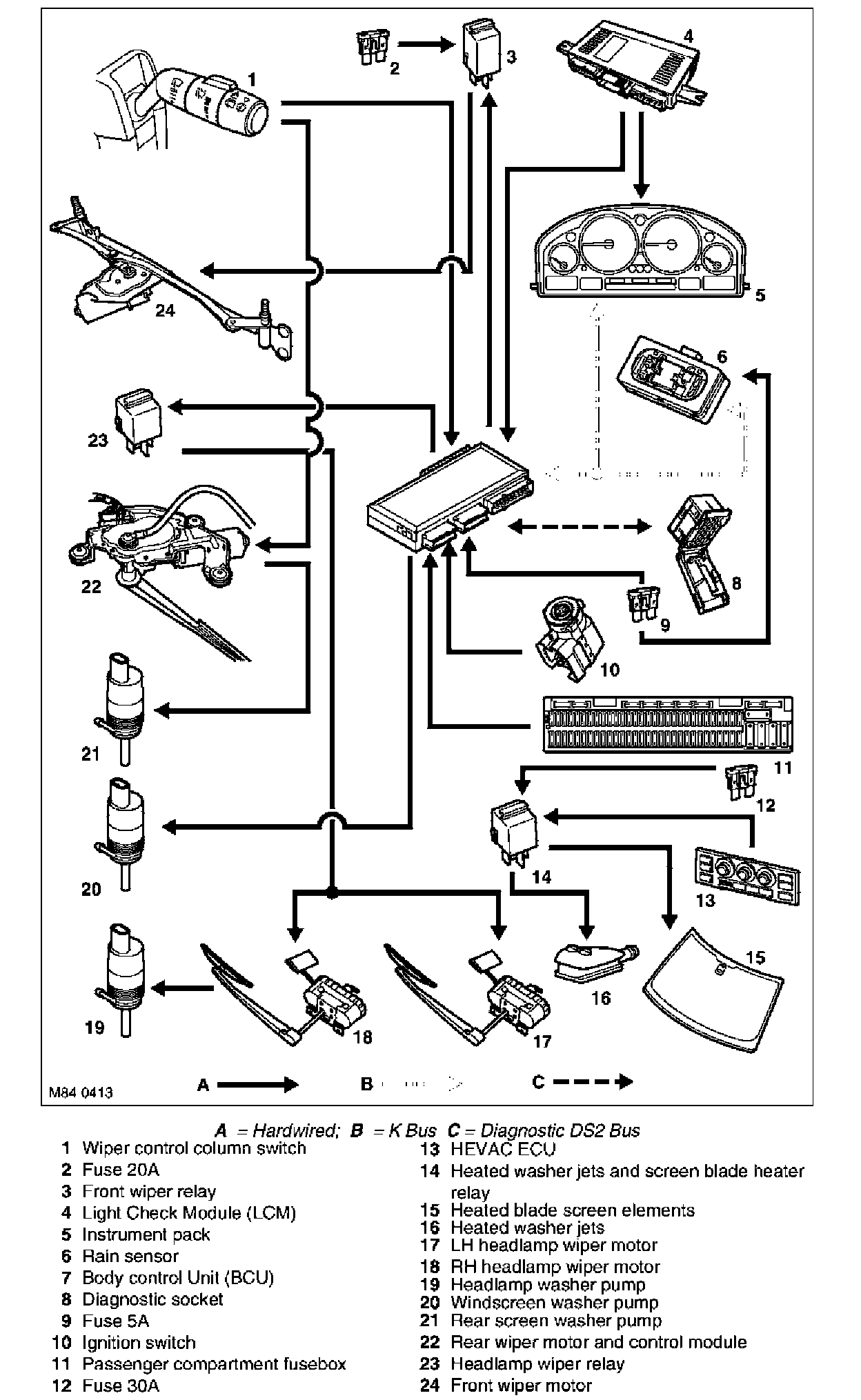

Control Diagram
