Land Rover
>>
2003
>>
Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>

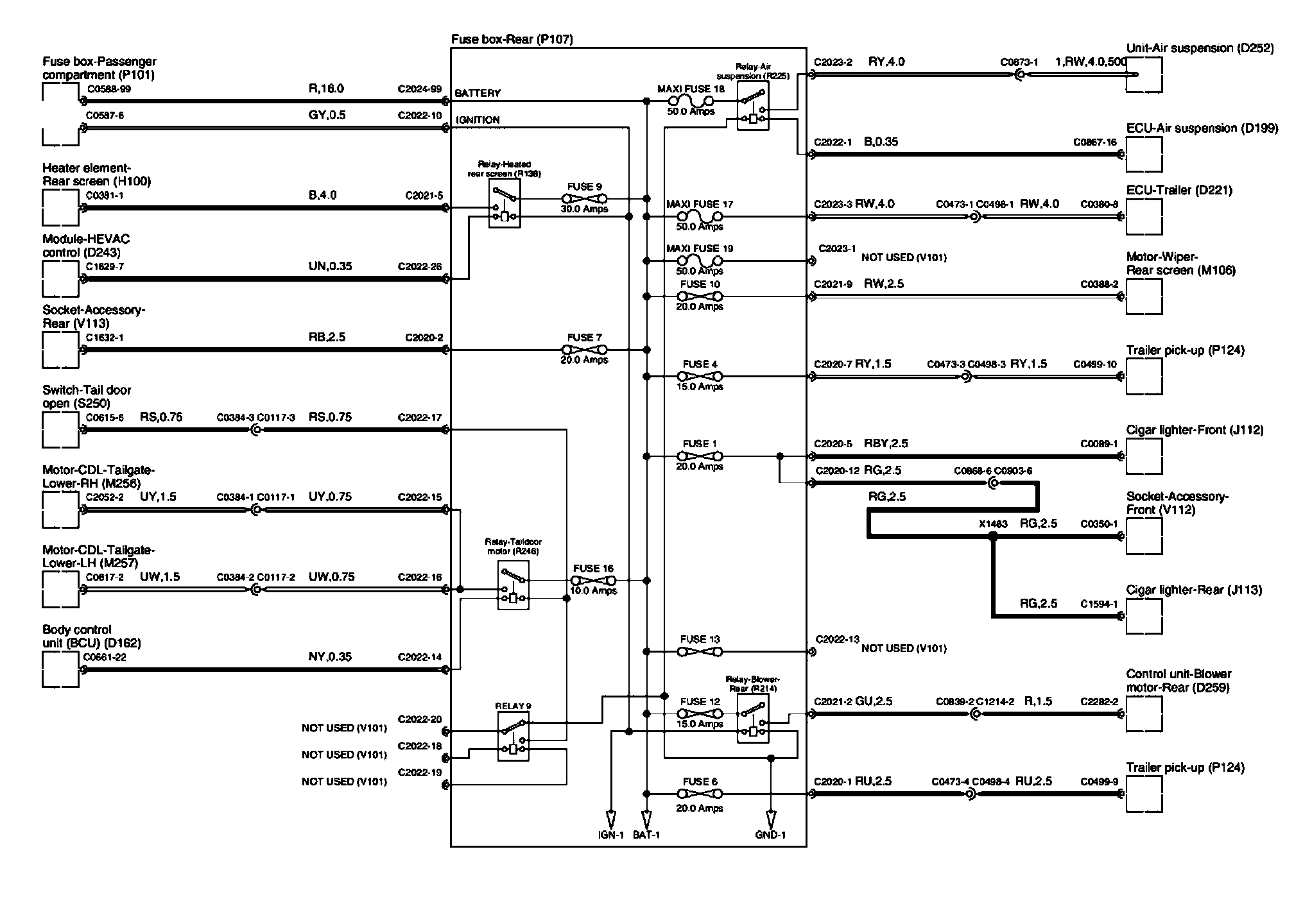

Rear Fuse Box

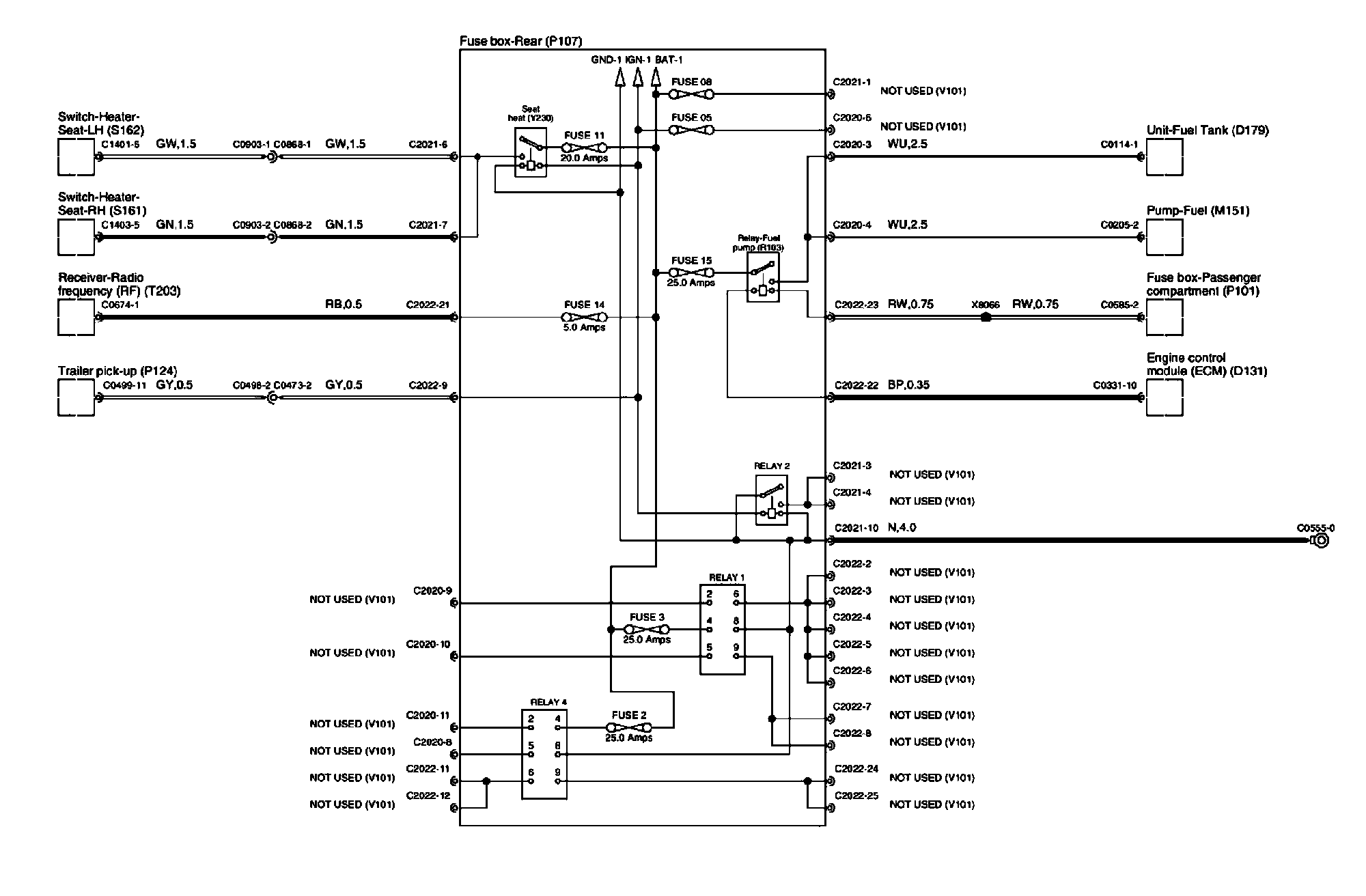

Rear Fuse Box
Rear Fuse Box
