Curiosii for ever!: Car repair manuals for everyone.
Home >> Land Rover >> 2003 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Front

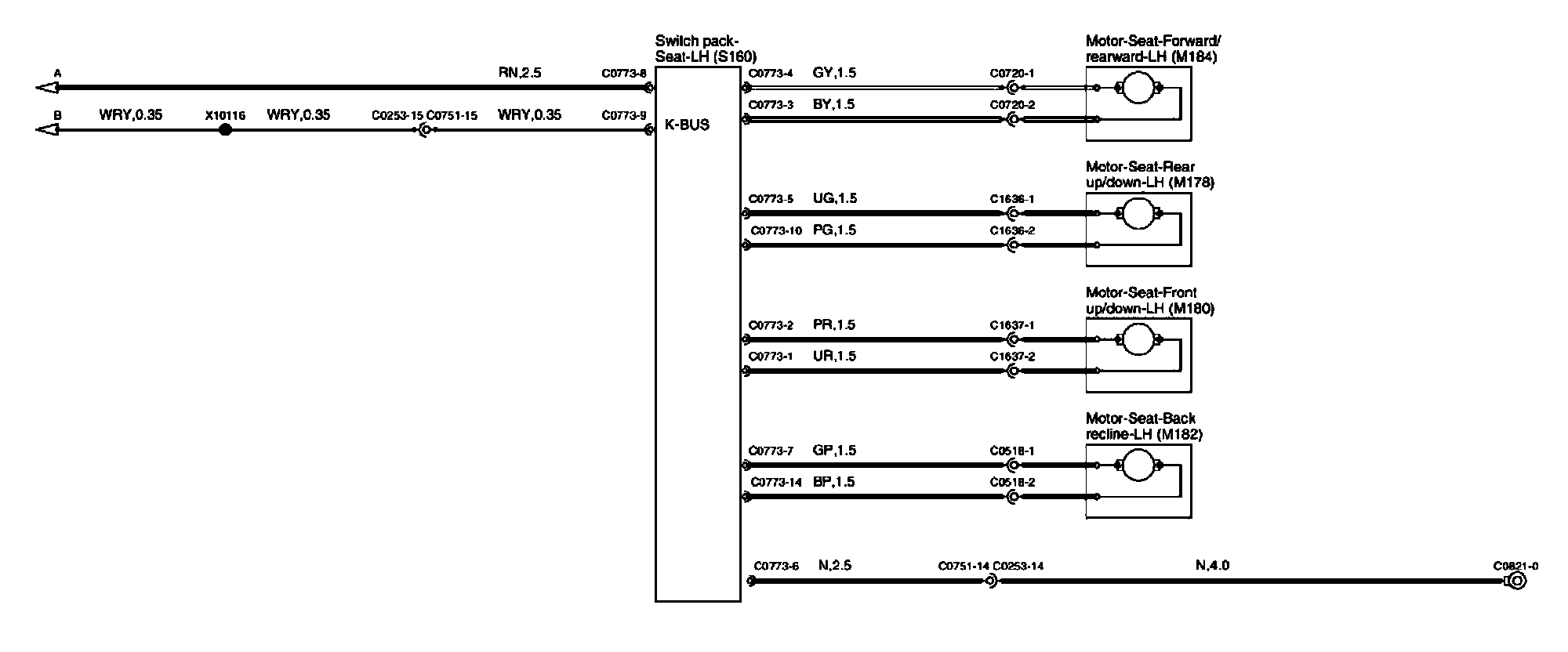

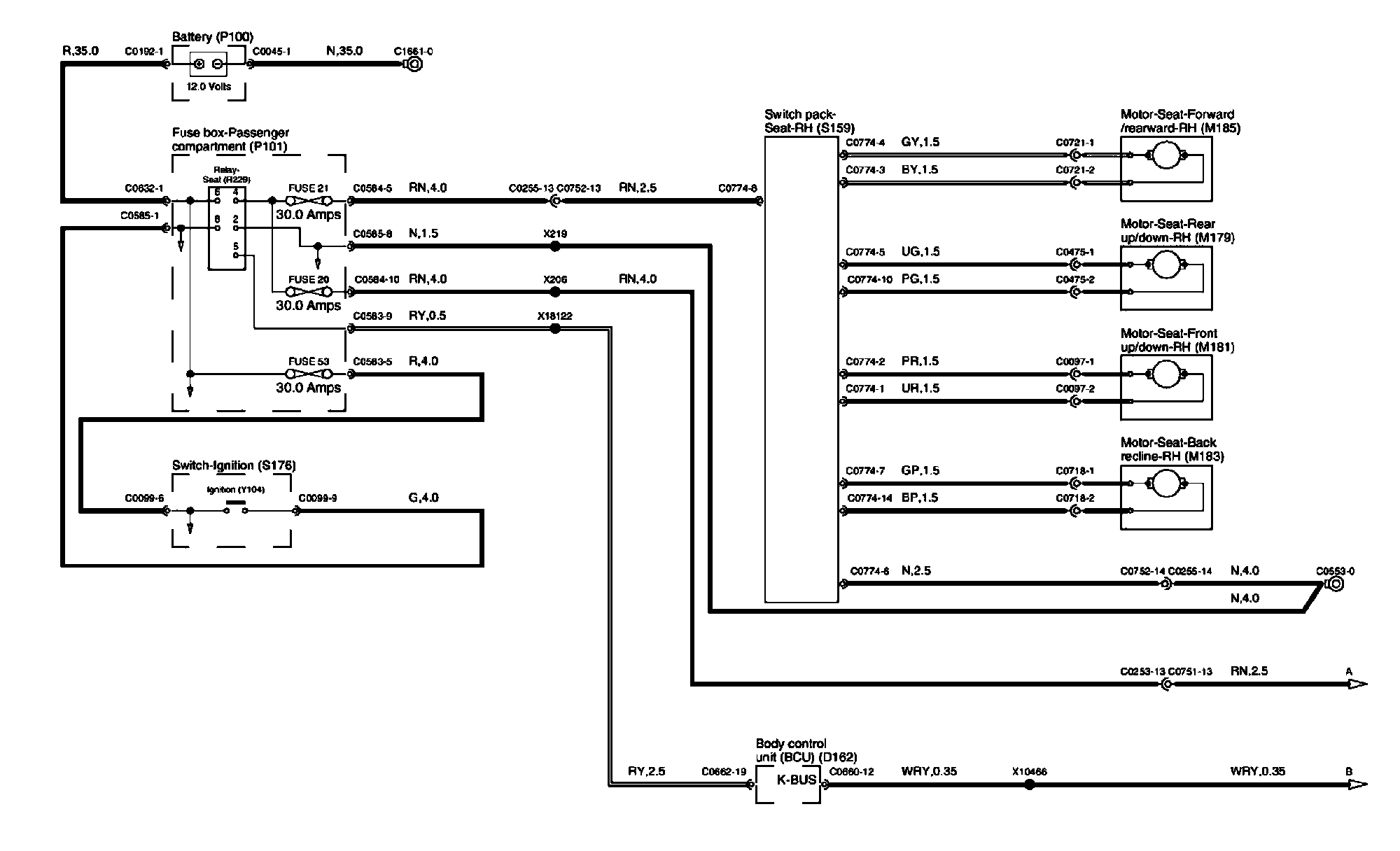

Front



Front Seats
