Land Rover
>>
2003
>>
Range Rover (LM) V8-4398cc 4.4L (M62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Communication Data Buses
>>

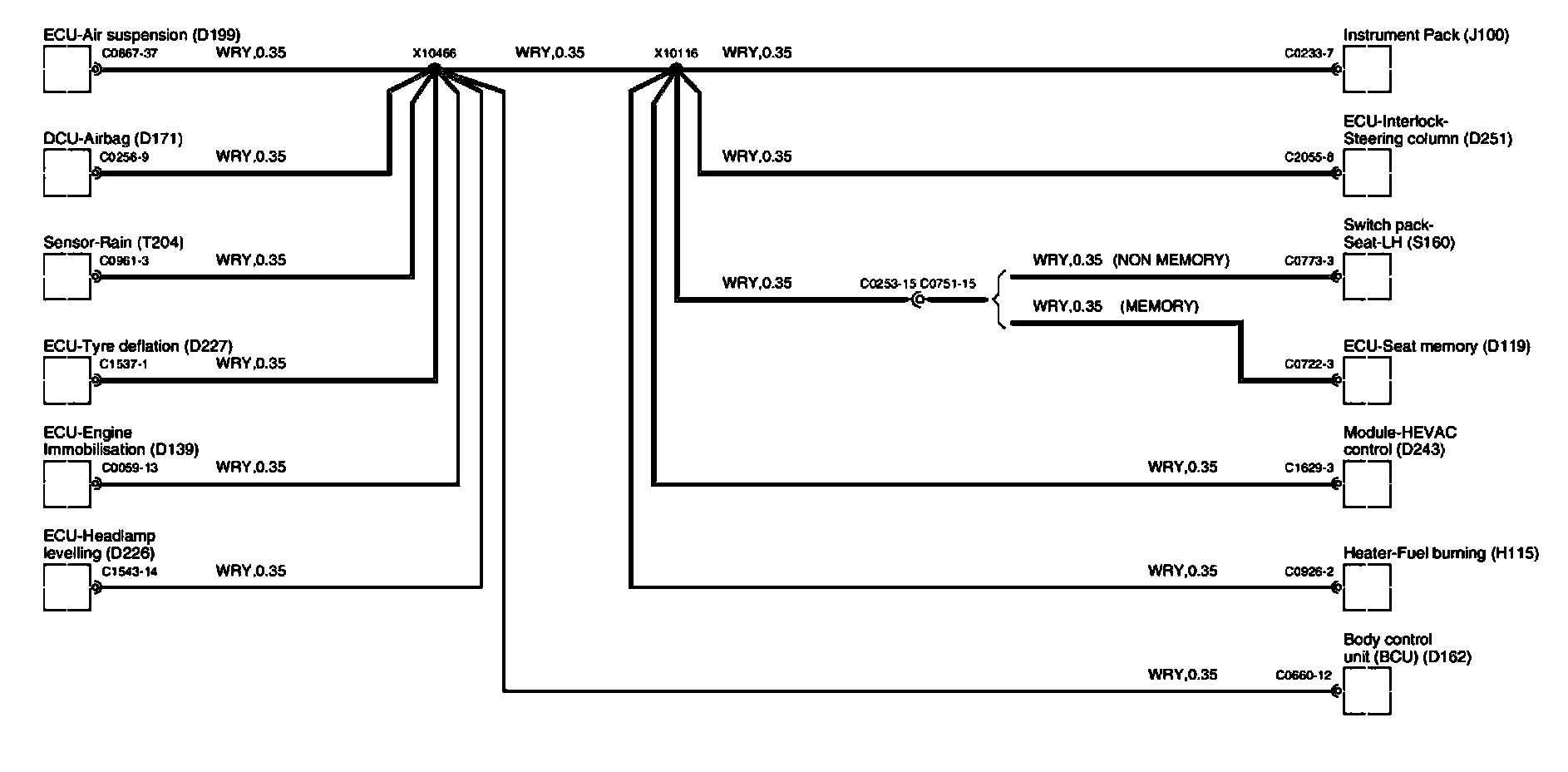

K Bus, I Bus
K Bus, I Bus
K Bus, I Bus
