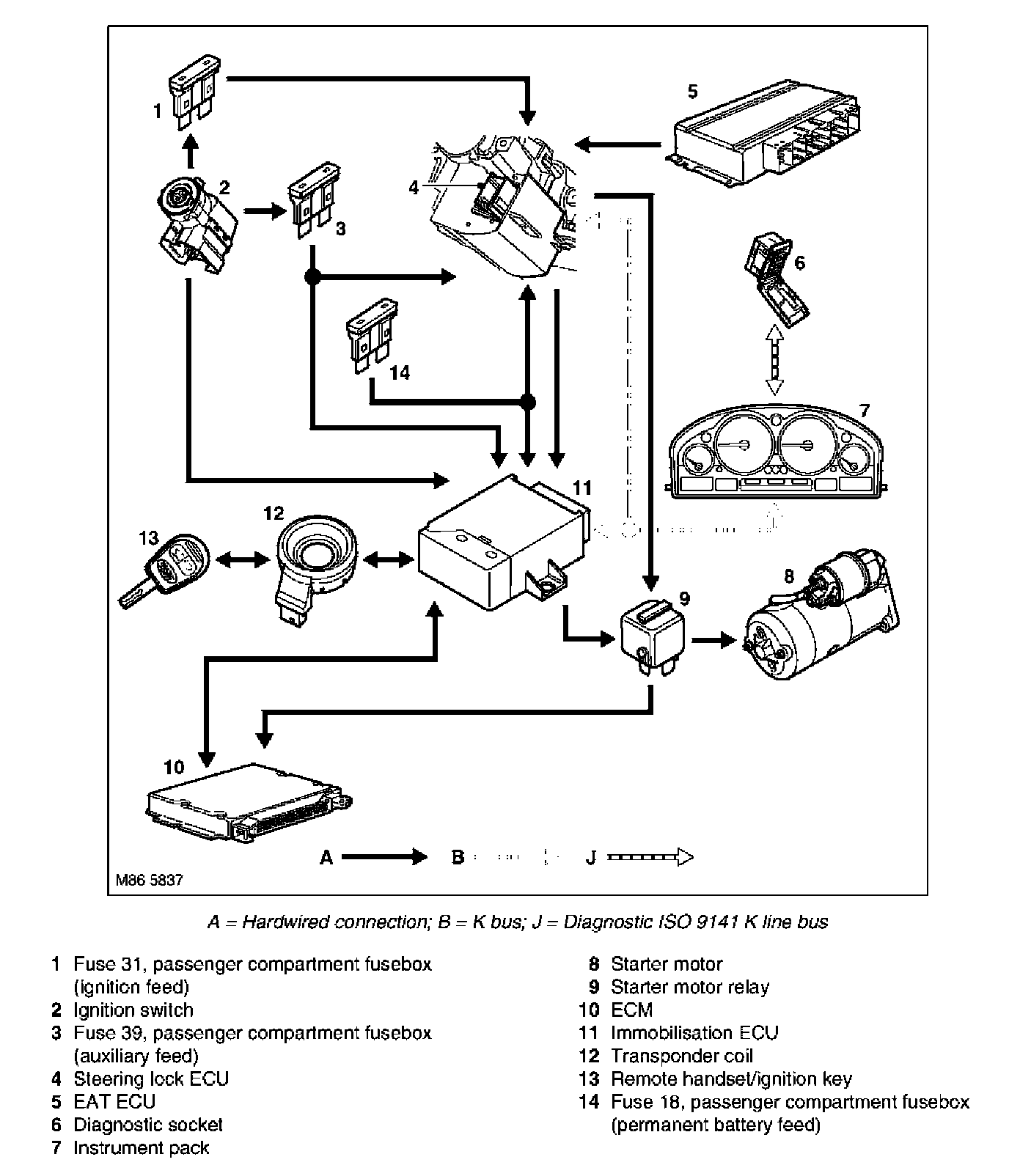

Immobilisation Control Diagram - Petrol
Immobilisation Control Diagram - Petrol
Immobilisation Control Diagram - Petrol
