Tailgate Striker: Adjustments

76.28.03 Tailgate Lower - Adjust On Striker

Check

1. Check for equal gap and alignment to adjacent panels. If incorrect follow adjust procedure below.

Adjust

1. Open tailgate.

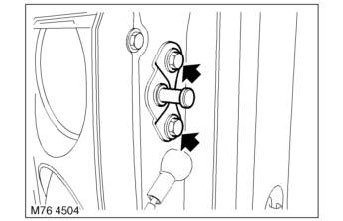

2. Loosen 2 bolts securing lower tailgate striker.
3. Close tailgate, check for equal gap and alignment to adjacent panels.
4. Open lower tailgate and tighten bolts securing striker to 25 Nm (18 lbf.ft).
5. Close tailgate.
