Squab Motor

Motor - Squab

Service repair No - 78.70.21

Remove
1. Remove seat assembly.

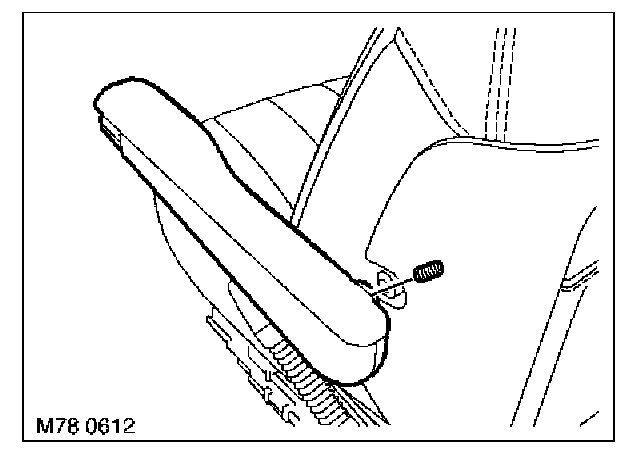

2. Remove Allen bolt securing arm rest.
3. Remove armrest from boss.
4. Remove headrest.





5. Release 3 backboard tension straps from under seat.

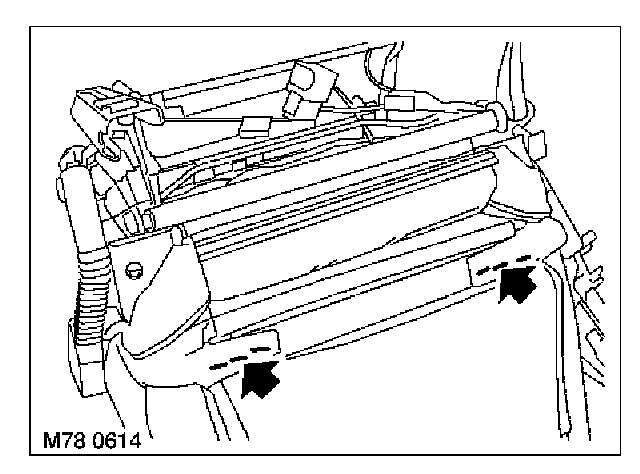

6. Release staples securing squab cover to lower backboard.





7. Release squab side cover from both sides of backboard.

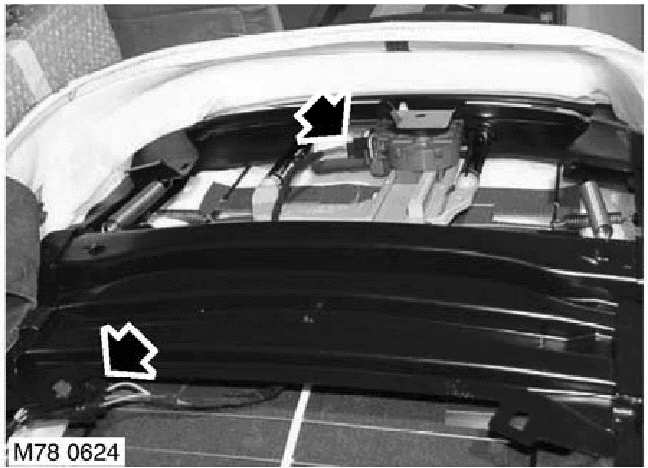

8. Release 2 studs securing lower half of backboard.
9. Release backboard from seat.

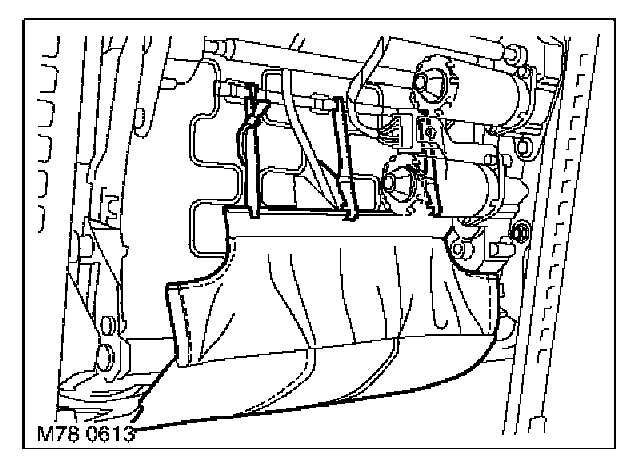

10. Disconnect multiplugs from headrest and upper squab motors.

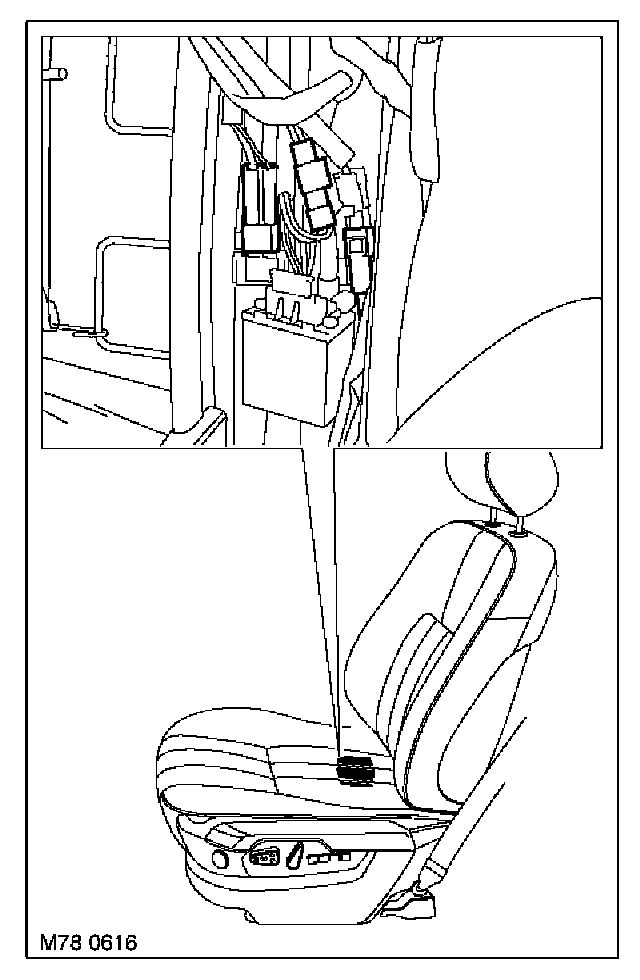

11. Disconnect multiplugs from lumbar pump and valve.
12. Disconnect multiplug to heated seat circuit.





13. Release harness from 4 retaining clips.

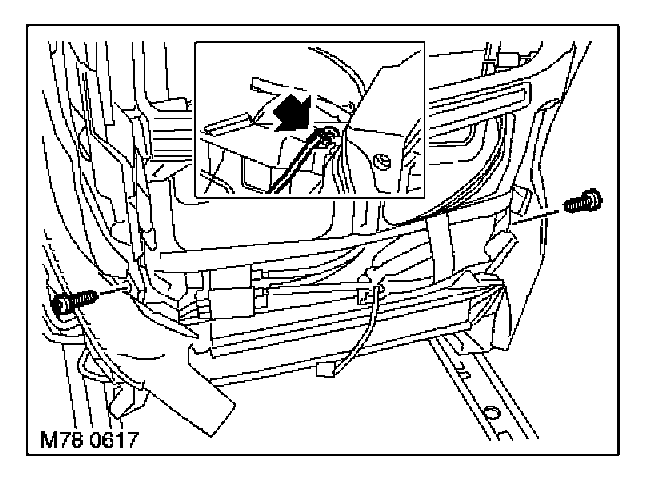

14. Remove 2 Torx bolts and remove squab frame from seat frame.

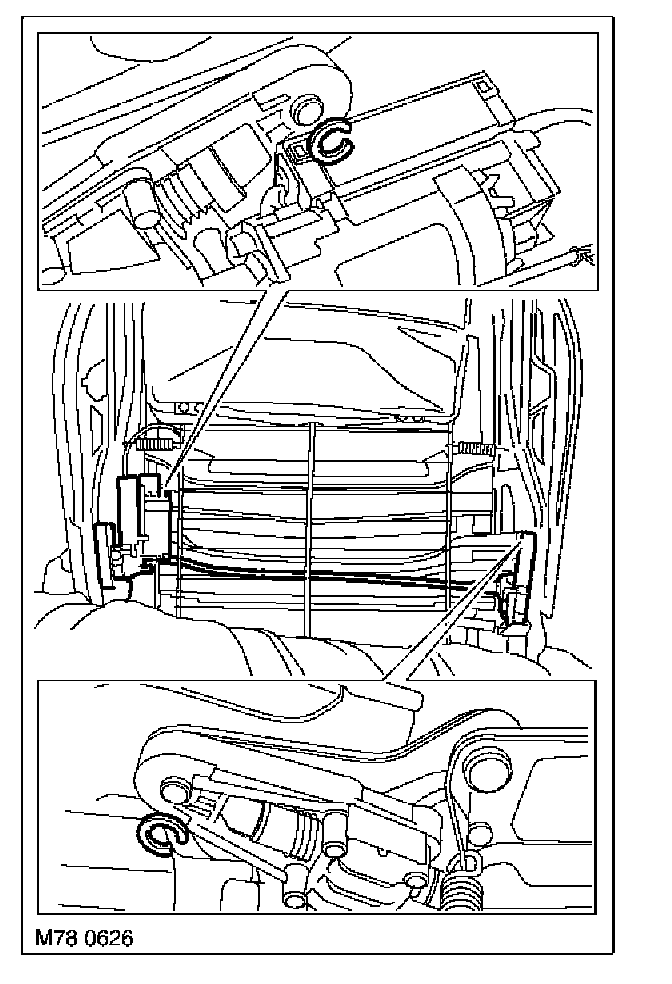

15. Remove 2 'E' clips securing motor assembly.
16. Carefully prise motor assembly from mounting bosses and release drive cable from assembly.

Refit
1. Position and fit drive cable to motor assembly.
2. Carefully fit motor assembly to mounting bosses.
3. Fit 'E' clips securing motor assembly.
4. Position squab frame to seat frame fit Torx bolts tighten to 25 Nm (18 ft. lbs.).
5. Position harness and secure retaining clips.
6 Connect multiplugs to headrest and squab motor
7 Connect multiplug to heated seat circuit.
8 Connect lumbar harness multiplugs to lumbar pump and valve.
9. Position backboard to seat assembly fit studs securing lower of backboard.
10. Position and fit both sides of squab cover to backboard.
11. Position lower squab cover to backboard and staple.
12. Fit backboard tension straps to under seat retaining clips.
13. Fit armrest to boss and secure with Allen bolt tighten to 25 Nm (18 ft. lbs.).
14. Fit seat assembly.
