Home >> Land Rover >> 2003 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Locations >> Motor-Door Lock-Rear

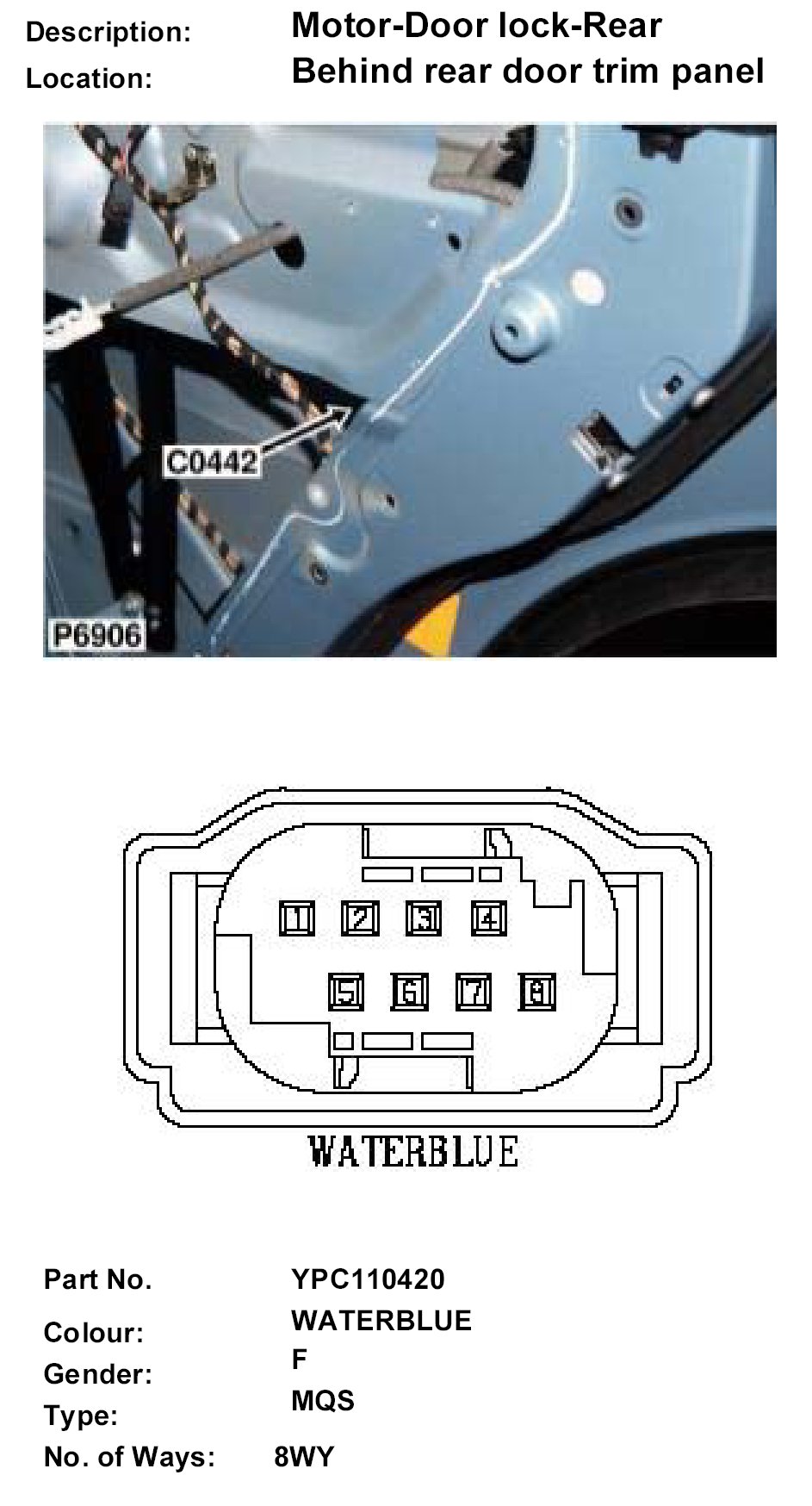

Motor-Door Lock-Rear

C0442 (Part 1):

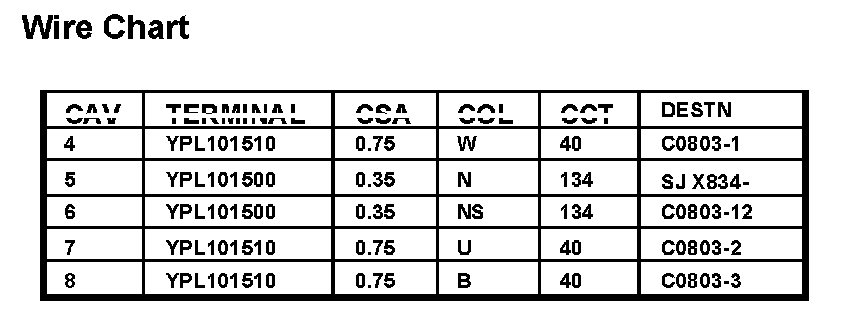

C0442 (Part 2):
