Home >> Land Rover >> 2003 >> Range Rover (LM) V8-4398cc 4.4L (M62) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Locations >> Motor-CDL-Tailgate-Lower-RH

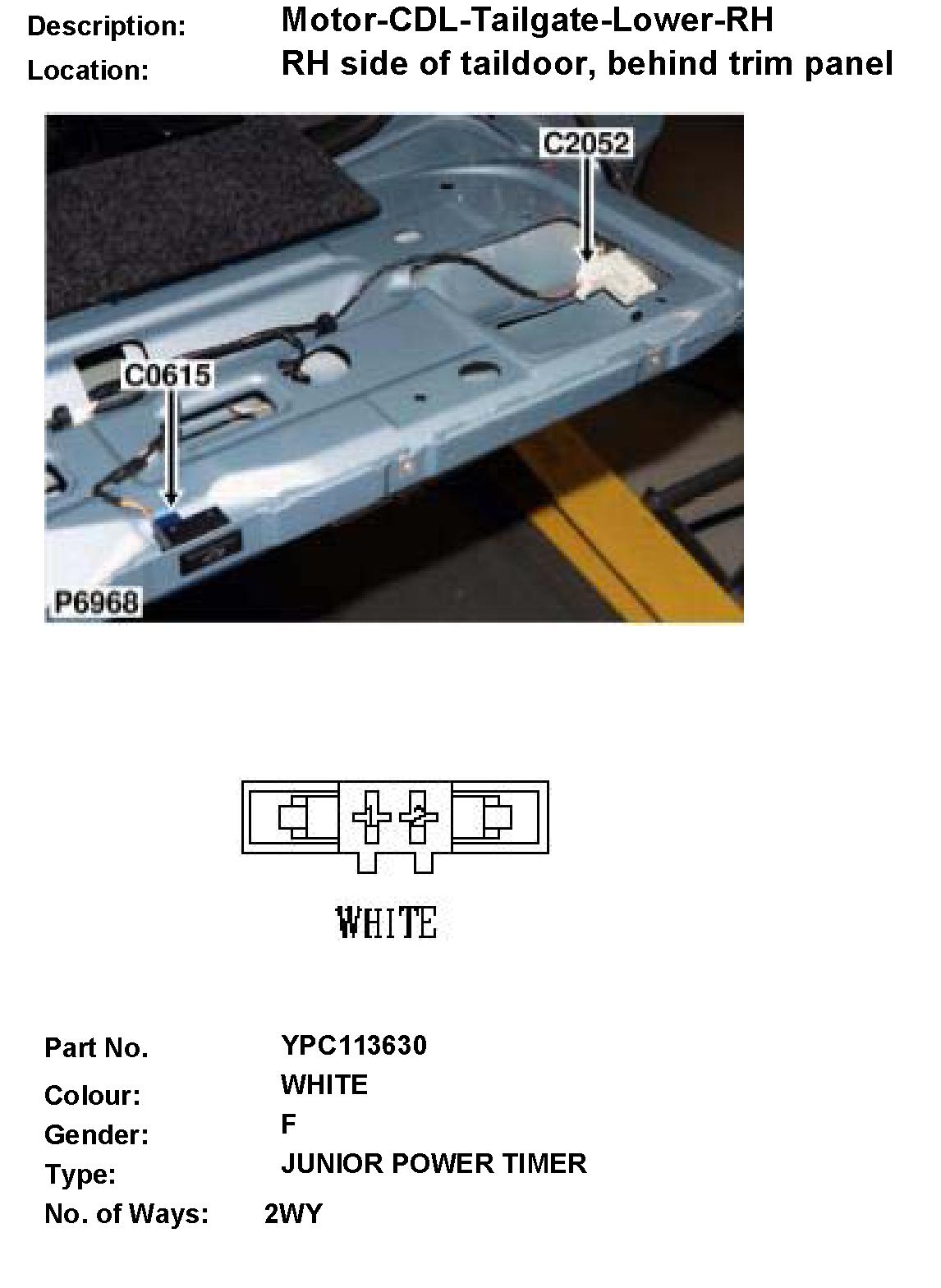

Motor-CDL-Tailgate-Lower-RH

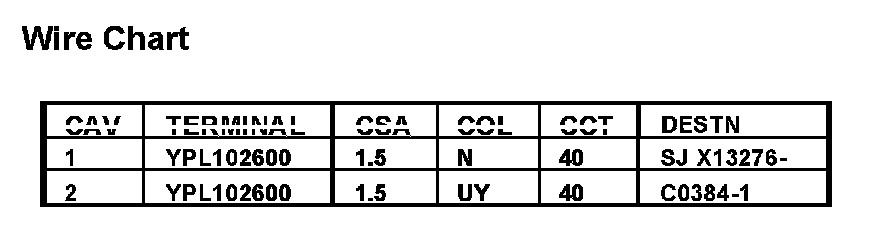

C2052 (Part 1):



C2052 (Part 2):
