Video Cassette Player / Recorder: Service and Repair

Video Unit

Service repair No - 86.53.70

Remove
1. Remove access panel from load space LH trim casing.

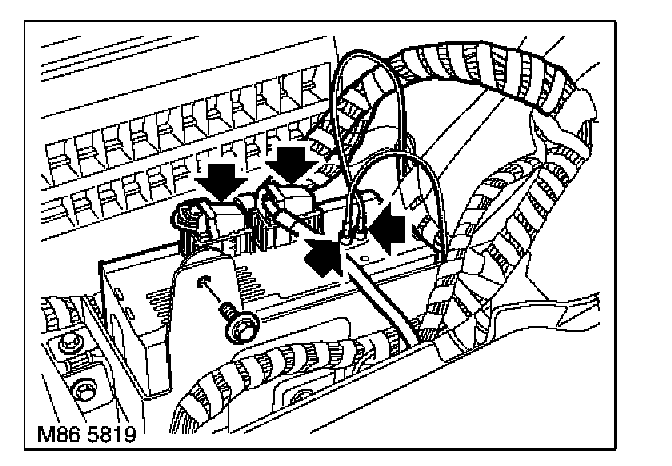

2. Disconnect 2 multiplugs from video module.
3. Identify and disconnect 2 coaxial cables.
4. Remove bolt securing video module and remove module.


Refit
1. Fit video module and tighten bolt to 10 Nm (7 lbf.ft).
2. Connect coaxial cables.
3. Connect multiplugs.
4. Fit access panel.
