Door Sensor/Switch (For Alarm): Service and Repair

Sensor - Alarm - Tilt

Service repair No - 86.77.06

Remove
1. Make the SRS system safe.
2. Remove front passenger seat.

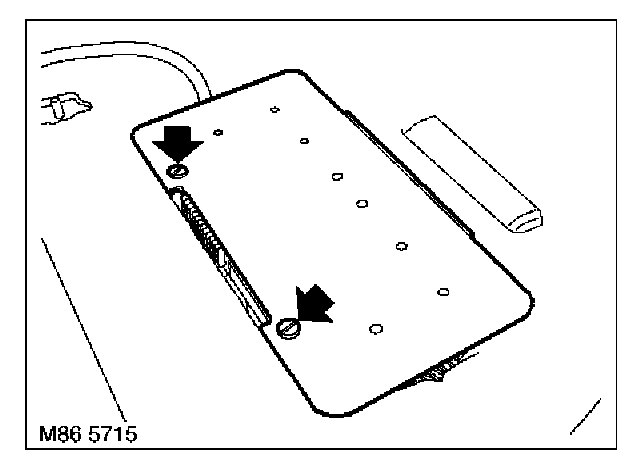

3. Release 2 turnbuckles securing cover and remove cover.

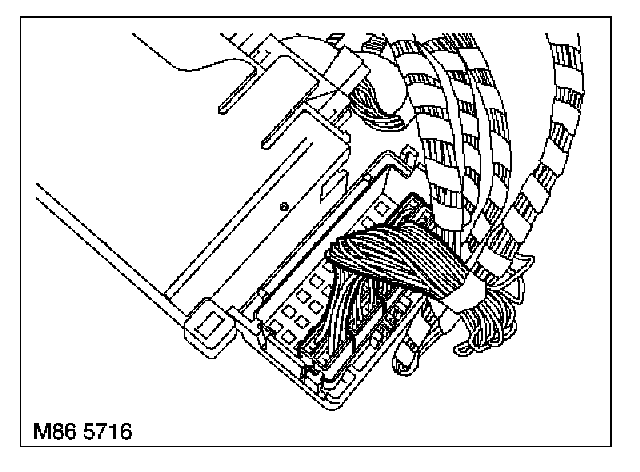

4. Release harness junction box and lay aside.







5. Remove 2 nuts securing holder.
6. Release tilt sensor from holder disconnect multiplug and remove sensor.

Refit
1. Position sensor connect multiplug and secure to holder.
2. Fit holder to studs and tighten nuts to 3 Nm (2.2 lbf.ft).
3. Fit junction box to holder.
4. Fit cover and secure with turnbuckles.
5. Fit front seat.
6. Initiate using TestBook/T4.
