Alarm System Transponder: Service and Repair

Receiver - Alarm

Service repair No - 86.77.31

Remove
1. Remove upper tailgate finisher.







2. Remove Torx bolt securing receiver to tailgate.

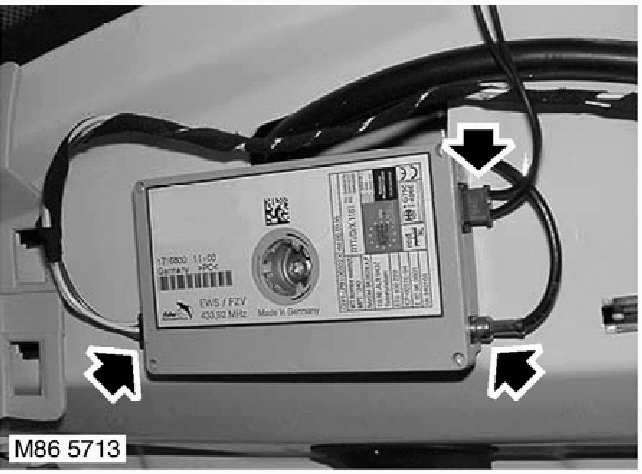

3. Disconnect 2 multiplugs and aerial lead from receiver, remove receiver.

Refit
1. Connect multiplugs and aerial lead to receiver.
2. Position receiver to tailgate mounting, fit and tighten bolt to 6 Nm (4.4 lbf.ft).
3. Fit upper tailgate finisher.
