Steering Damper: Service and Repair

Remove
1. Raise the vehicle.

WARNING: Support on safety stands.

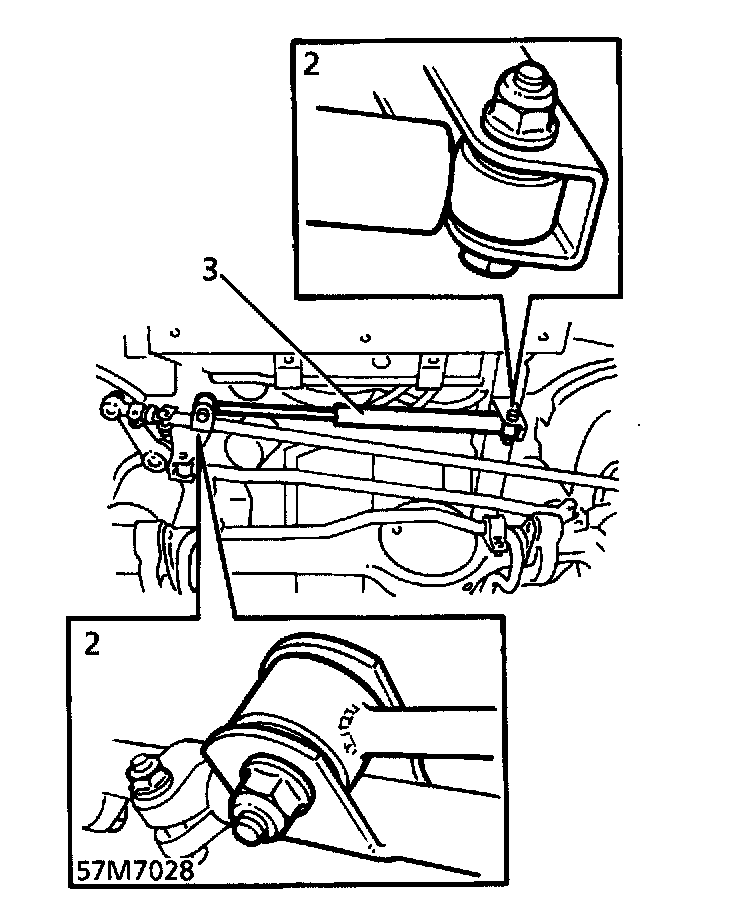

2. Remove damper fixings at both ends.
3. Remove damper.

Refit
4. Fit damper to chassis. Fit, but do not tighten nut and bolt.
5. Fit damper to drag link, fit nut and bolt, tighten to 80 Nm (59 ft. lbs.)
6. Tighten damper to chassis fixing. Tighten to 125 Nm (92 ft. lbs.)
7. Remove safety stands. Lower vehicle.
