Power Steering Pump: Service and Repair

Remove

CAUTION: Seal all disconnected pipes and ports to prevent ingress of dirt.

1. Remove alternator drive belt.
2. Position suitable container below vehicle to catch oil spillage.

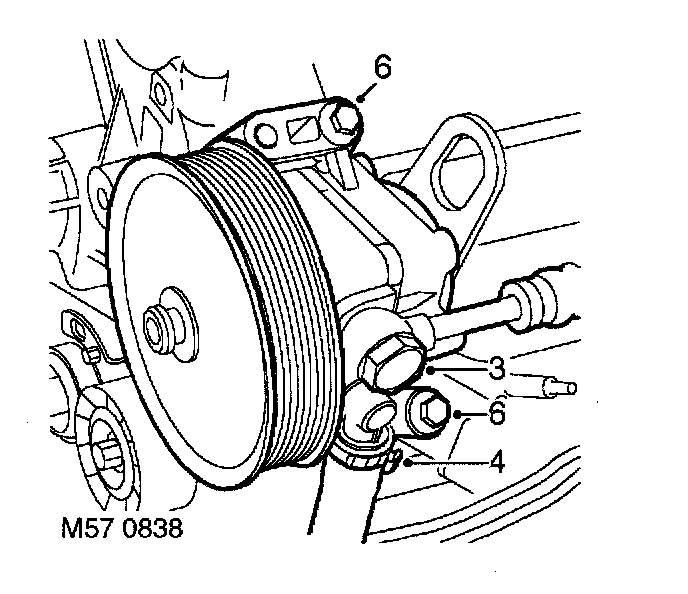

3. Remove banjo bolt securing high pressure pipe to pump. Remove and discard sealing washers.
4. Remove and discard clip securing feed hose to pump and disconnect hose.
5. Plug open connections on pump, high pressure pipe and feed hose.
6. Remove 2 bolts securing pump to mounting bracket and remove pump.

Refit
7. Clean pump and mounting bracket mating faces, dowel and dowel holes.
8. Fit pump to mounting bracket and tighten bolts to 25 Nm (18 ft. lbs.).
9. Connect feed hose to pump and secure with new clip.
10. Clean high pressure pipe and banjo bolt.
11. Connect high pressure pipe to pump using new sealing washers. Tighten banjo bolt to 25 Nm (18 ft. lbs.).
12. Fit alternator drive belt.
13. Bleed power steering system.
