Body - Erratic Power Mirror Fold Operation
No: 76/01/05/NASFGN LM501
Ref:
*Issue: 2
Date: 9 September 2005*
Updated information is noted by asterisks.
Door Mirror Power-Fold Fault
AFFECTED VEHICLE RANGE:
*Range Rover (LM) 2A100042 4A180213*
SITUATION:
ERRATIC EXTERIOR MIRROR POWER FOLD OPERATION
NOTE:
The power fold mirror function is disabled above 6 mph (10 kph)
A customer may report a concern relating to the operation of the exterior mirrors' power-fold function.
When the power-fold mirror switch is operated with the vehicle traveling below 6 mph (10 kph), one of the following symptoms may be experienced:
^ The mirrors do not fold.
^ Only one mirror folds.
^ The mirrors fold inward but immediately unfold.
RESOLUTION:
INSPECT AND VERIFY MICROSWITCH OPERATION
Should a customer express concern regarding erratic power mirror fold operation, refer to the Service Procedure detailed in this bulletin. The symptoms indicate that a mirror micro-switch may be disconnected or faulty.
PARTS INFORMATION:
CRI000020PUY .......Bezel - RH
CRI000030PUY .......Bezel - LH
CRC000081PUY......Cover with puddle lamp - RH
CRC000091PUY......Cover with puddle lamp - LH
DDW WARRANTY CLAIMS:
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
Normal Warranty policy and procedures apply.
Material allowance is included in labor operation.
REPAIR PROCEDURE
INSPECT MIRROR MICROSWITCH FOR PROPER OPERATION
1. Connect T4 to the vehicle.
2. Select "DIAGNOSTIC SYSTEM".
3. Select vehicle model, input the VIN and follow the on screen instructions.
4. Select "SYSTEM DIAGNOSTICS".
5. Select "Seats & Mirrors".
6. Select "Real-time Display".
7. Select "Mirrors".
NOTE:
The door mirror micro-switch will cycle through an OFF/ON/OFF state in the next step. This indicates the switch is working.
8. Operate the power-fold function switch and observe the response of the corresponding T4 display.
CAUTION:
It is advisable to check on the availability of replacement covers/bezels before proceeding to the next step and attempting to remove the mirror back cover. The cover can be removed (without damage) to gain access to the micro-switch.
9. If the micro-switch state does not change, release the clips on the inside of the cover using a flat tool.

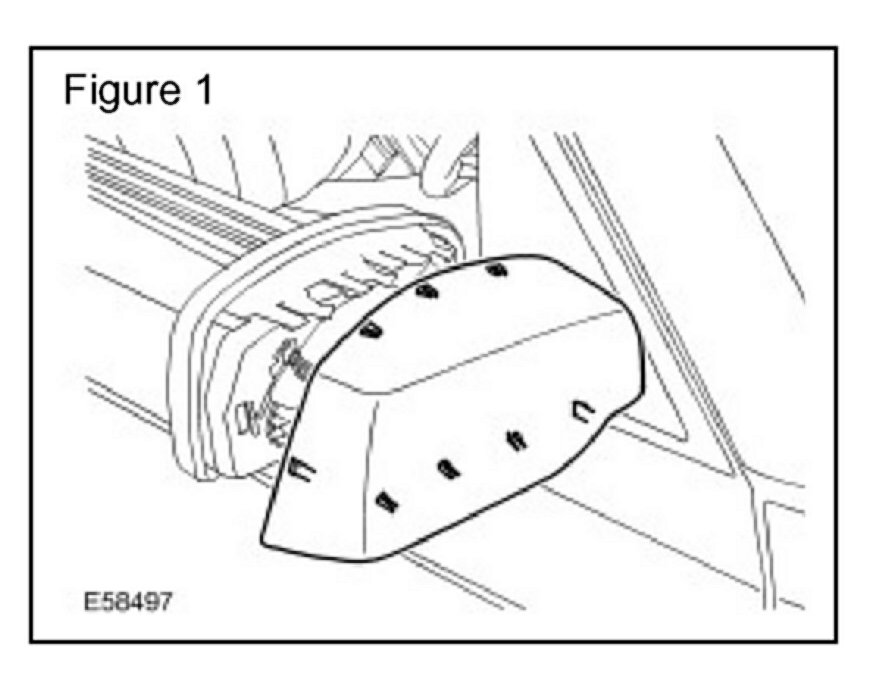

10. Unclip the mirror back-cover. (Figure 1)
CAUTION:
Care must be taken not to damage the plastic fins inside the mirror cover, which form part of the clip fit. If damage occurs, it may become necessary to replace the cover/bezel.
11. Inspect the micro-switch electrical connection.
12. If the micro-switch has become dislodged from its correct position, return the micro-switch to the correct location to establish connection. (Figure 2)
13. Operate the power-fold function switch and observe the response of the corresponding T4 display.
NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ LN Freelander/2004 > Workshop Manuals > Service Procedures > Bookmark "Doors 76-1-1" > TOC "Repairs/Latch - rear door" link Range Rover EXTERIOR FITTINGS, Motor - exterior mirror (76.11.09).
14. If there is still no state change in the corresponding T4 display for the micro-switch, the micro switch is faulty. Refer to GTR Section 76.11.09 and perform the following:
^ Install a new mirror assembly and submit a separate warranty claim for that operation.
^ Operate the power-fold function switch and observe the response of the corresponding T4 display.
15. Verify that the switch state is now functioning correctly.
16. Install the mirror back-cover on mirrors that have been checked and corrected.
17. Return to the T4 "Seats and Mirrors" main menu.
18. Select "Force Outputs" and check each mirror operation against its output to ensure correct operation.
19. If all functions are operating correctly, disconnect T4 from the vehicle.
