Steering Column: Locations

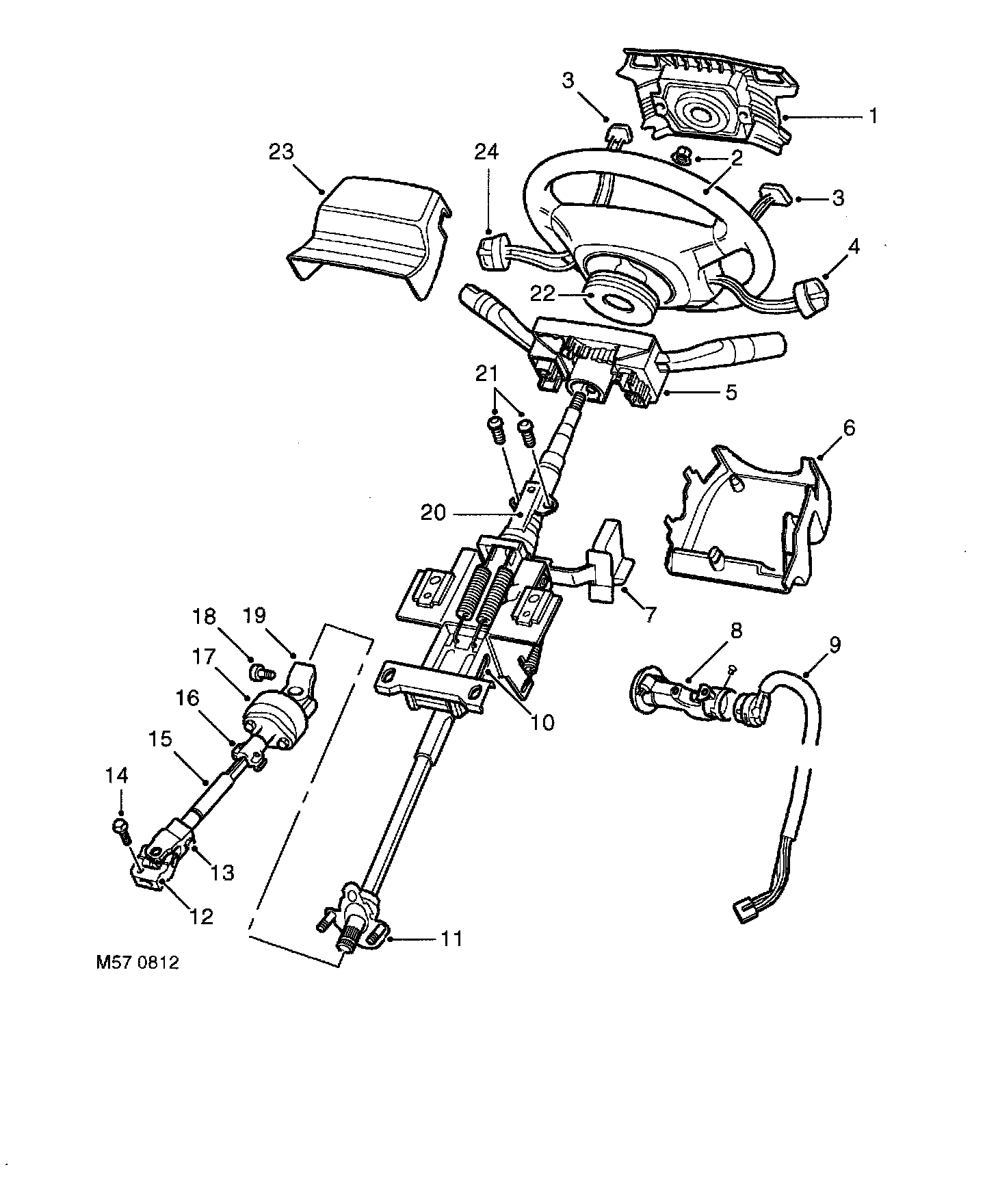

Steering Column Assembly and Intermediate Shaft.

1 Air bag module
2 Steering wheel and nut
3 Horn switch 2 off
4 Radio remote control switch
5 Column switches
6 Lower nacelle
7 Column tilt adjustment lever
8 Steering column lock
9 Ignition switch and harness
10 Lower column
11 Lower bearing
12 Universal joint and split adapter
13 Bolt
14 Bolt
15 Intermediate shaft
16 Compression joint
17 Rubber coupling and heat shield
18 Bolt
19 Universal joint
20 Column tube
21 Shear bolt 2 off
22 Rotary coupler
23 Upper nacelle
24 Cruise control switch (if fitted)
