Air Injection Vacuum Reservoir: Service and Repair

Secondary Air Injection (SAI) Vacuum Reservoir - Up to MY 2003

Remove

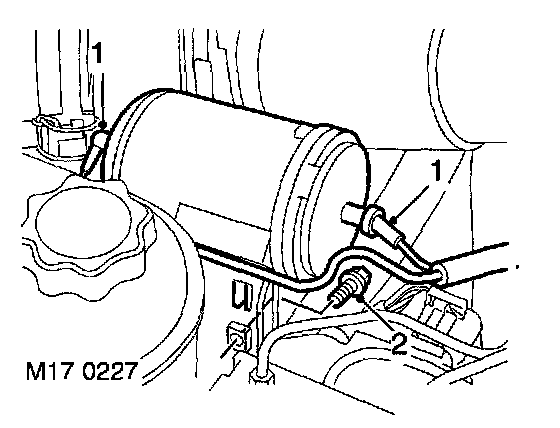

1. Disconnect 2 vacuum hoses from reservoir.
2. Remove bolt securing reservoir to mounting bracket and collect reservoir.

Refit

1. Position reservoir to mounting bracket and tighten bolt to 10 Nm (6 ft. lbs.).
2. Connect vacuum hoses to reservoir.
