Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2002
>>
Discovery II (LT) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
With Bosch Engine Management
>>

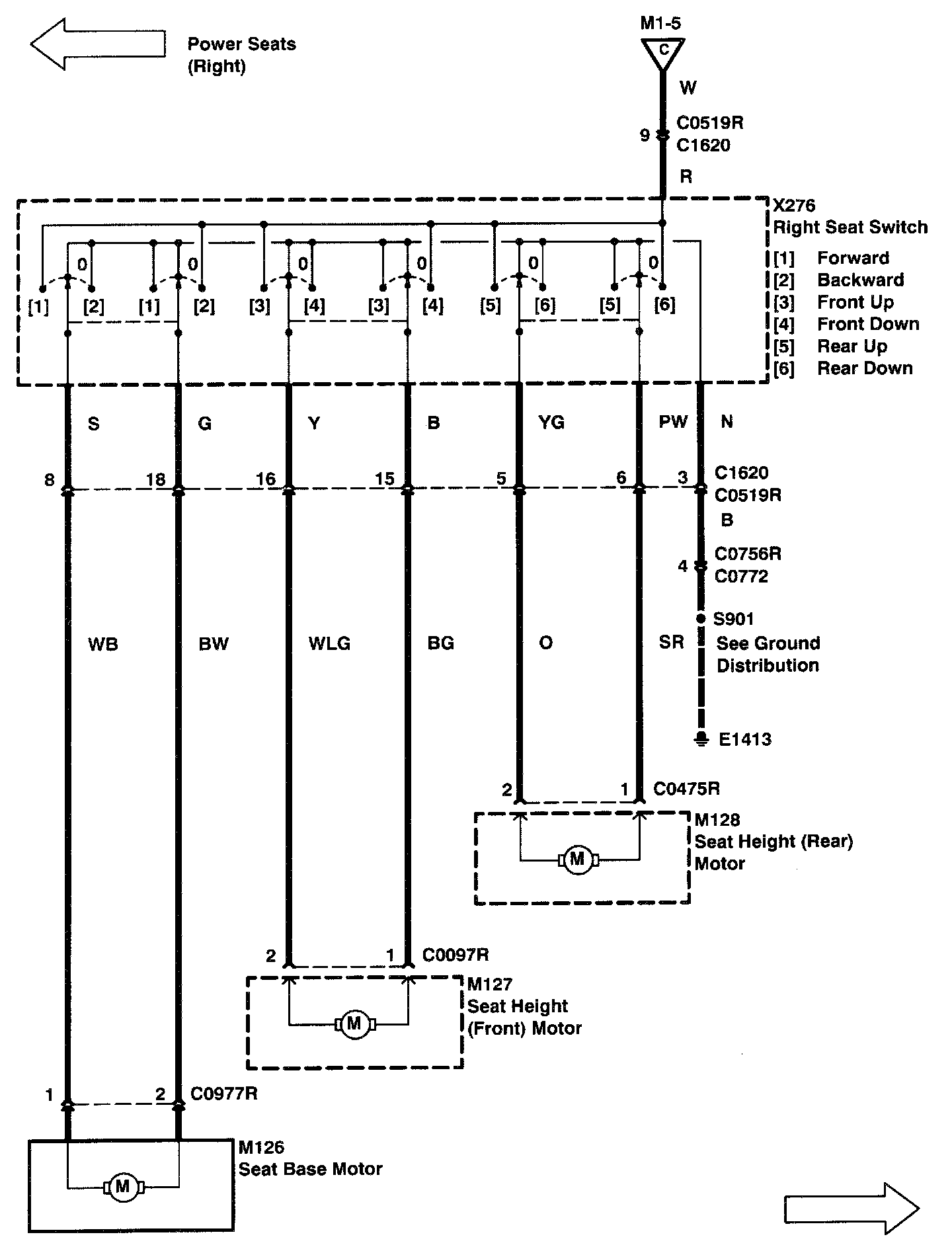

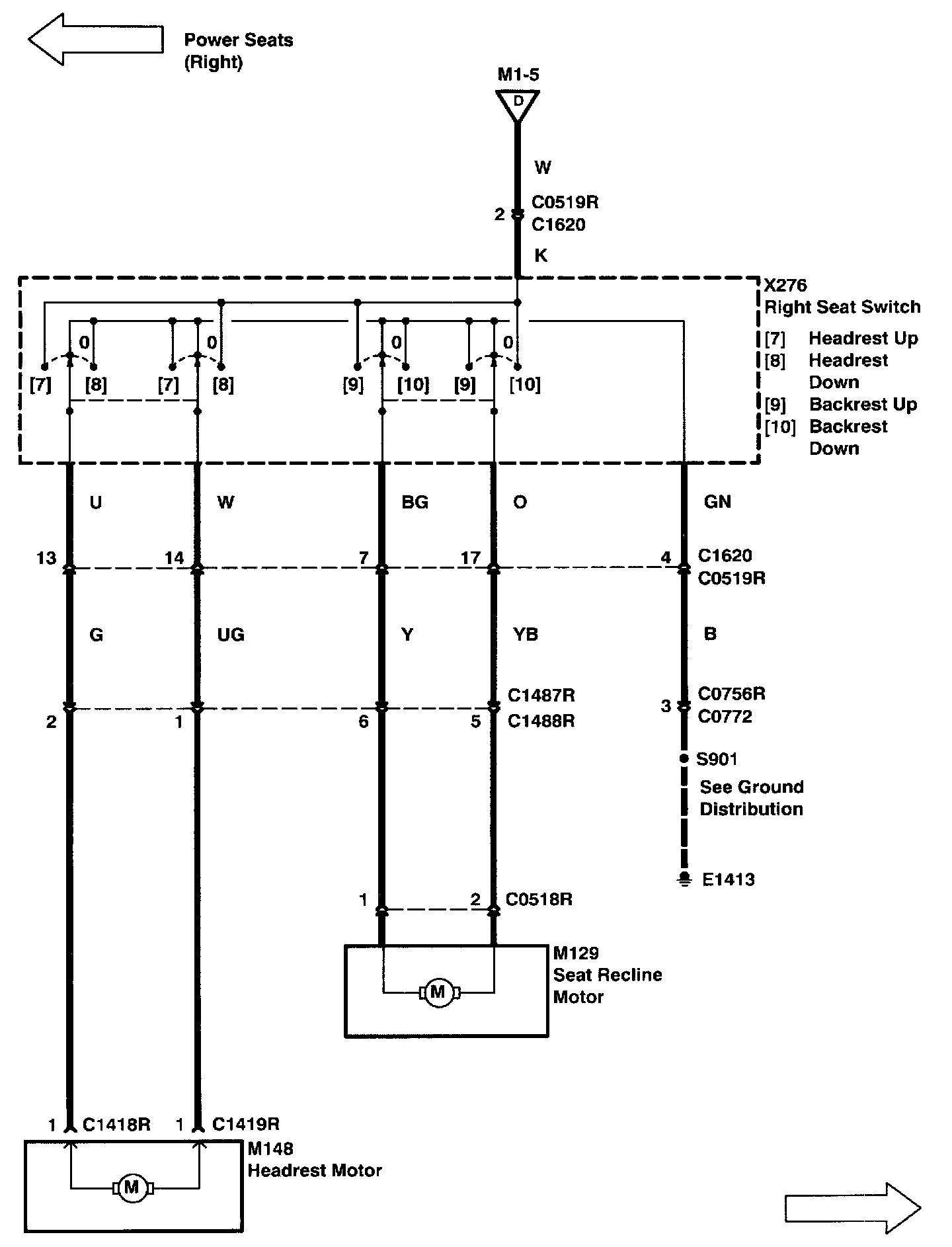

Power Seats
>>
Right
Right
M1-5:
M1-6:
M1-7:
