Home >> Land Rover >> 2002 >> Discovery II (LT) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> With Bosch Engine Management >> Power Seats >> Left

Left

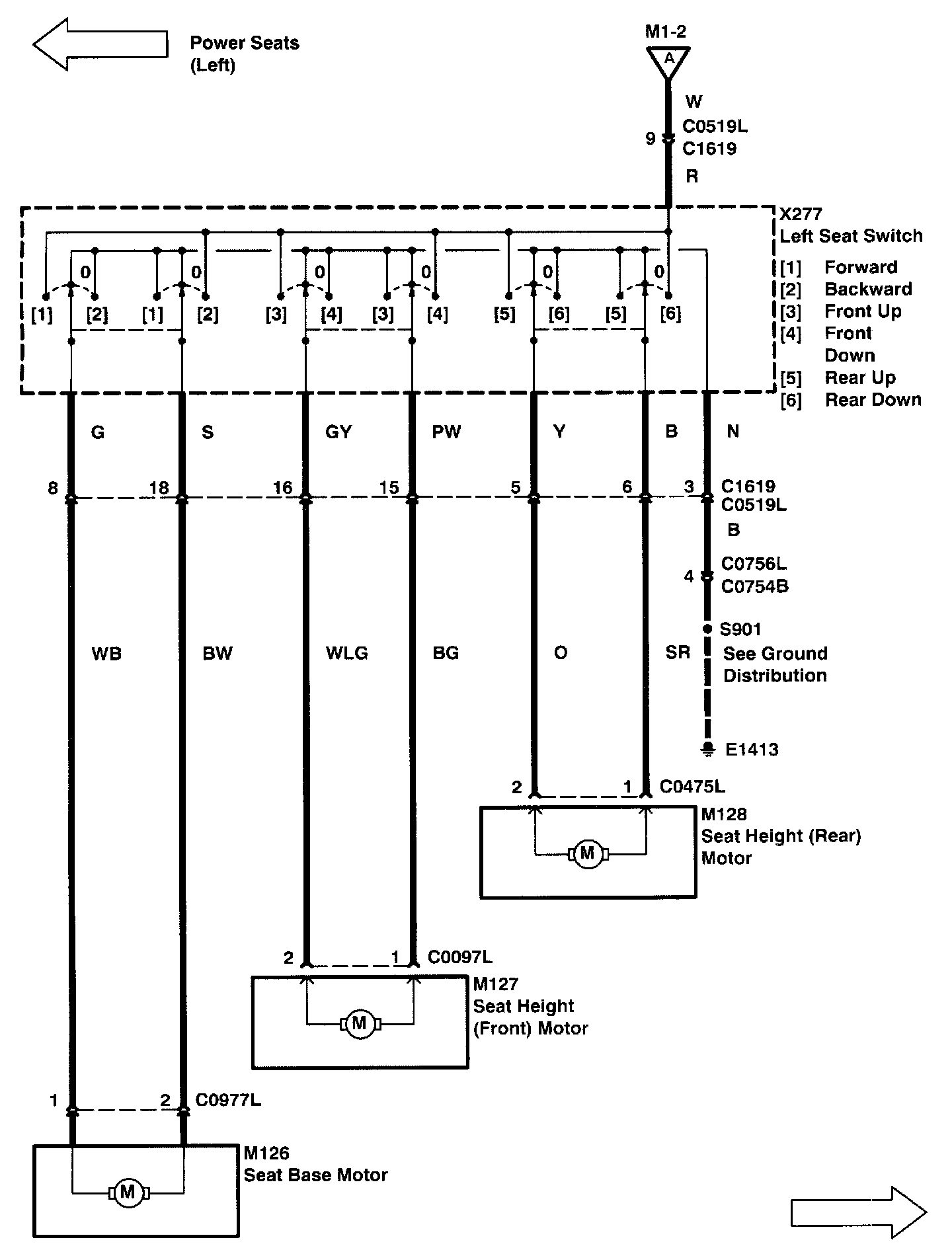

M1-1:

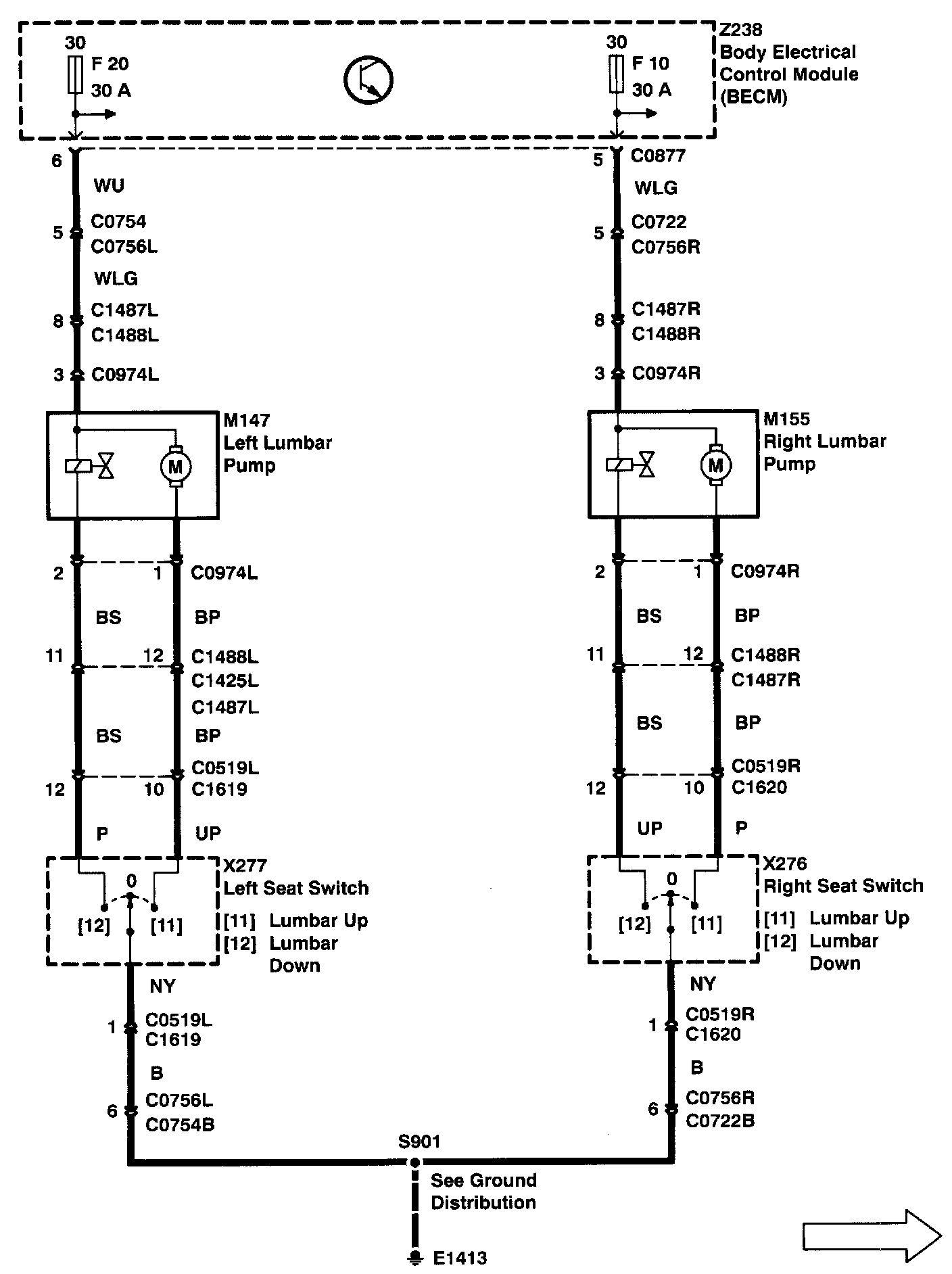

M1-2:





M1-3:





M1-4:
